Overview

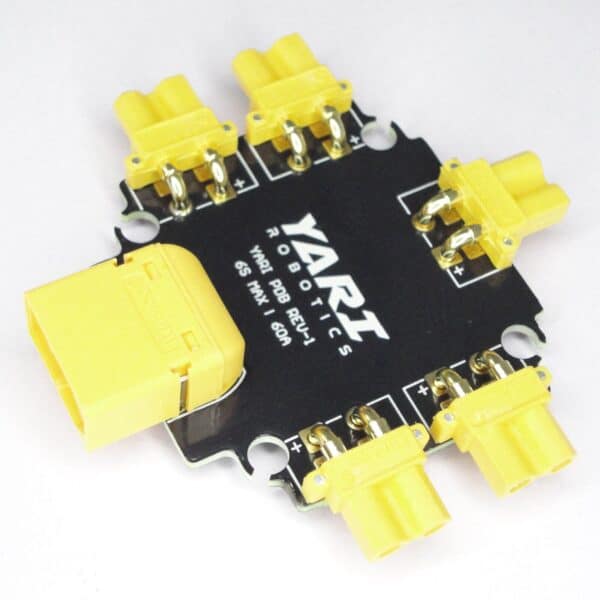

YARI Power Distribution Board (PDB) 60A is designed to distribute battery power cleanly to YARI single ESCs in multirotor builds. It provides four dedicated ESC power outputs for a quadcopter, plus one additional output for peripherals, a companion computer, or other onboard equipment.

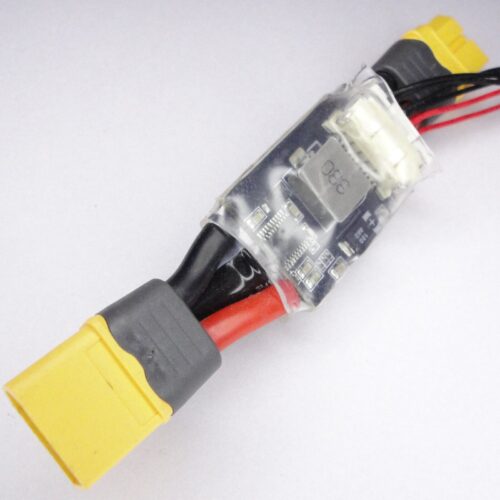

The board is intended for use with the YARI 12S PAB Power Module. Pre-soldered XT60PW-M connectors are provided for the battery input and power-module connection. Users can solder XT30PW-F connectors to the output pads as required for their ESCs and peripherals.

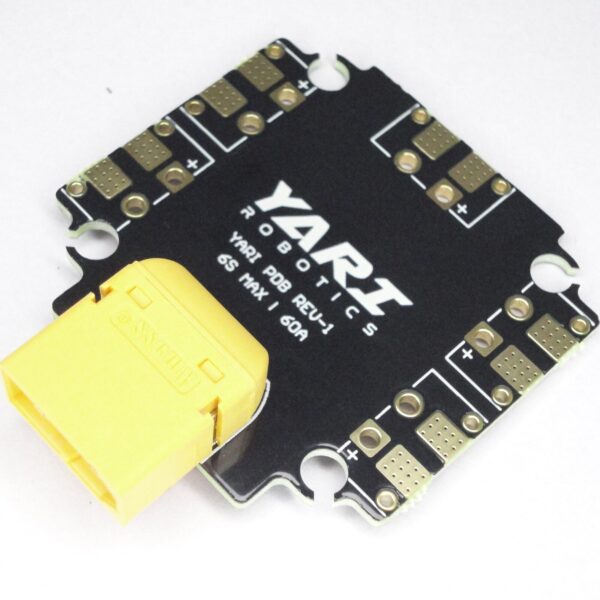

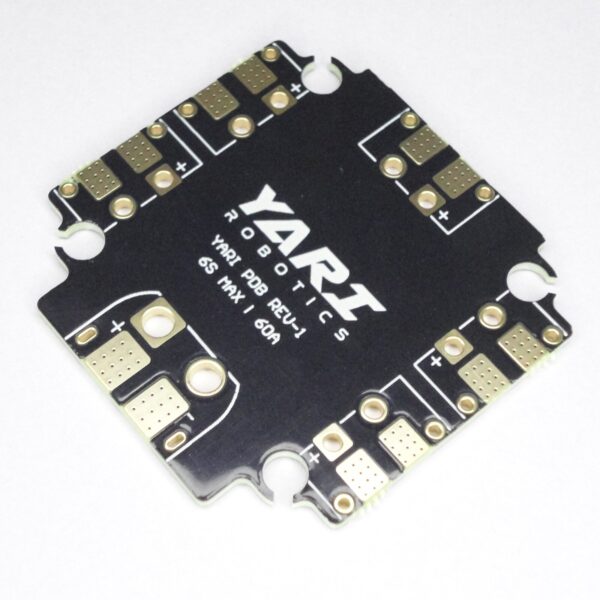

The pre-soldered XT60PW-M connector is rated for 60 A and is the limiting factor for the assembled board. Its short-duration maximum-current specification is 120 A for less than 60 seconds. The PCB itself has higher current headroom than the XT60PW-M connector, supported by its 4 oz copper construction. Solder pads are provided on both sides of the board so users can solder appropriately sized AWG wires for their intended current.
Key Features
- Quadcopter-ready power distribution: Four output pads for YARI single ESC power inputs.
- Auxiliary power output: One additional output pad for peripherals, companion computers, or other onboard equipment.
- YARI power-module compatibility: Designed for use with the YARI 12S PAB Power Module.
- XT60PW-M input and power-module connections: Pre-soldered XT60PW-M connectors rated for 60 A; these connectors set the current limit for the assembled board and support 120 A for less than 60 seconds.
- XT30PW-F output option: Solder XT30PW-F connectors directly to the output pads for ESCs and peripherals.
- Direct-wire flexibility: Power solder pads on both sides of the board allow appropriately sized AWG wires to be soldered for the intended current.
- Heavy-copper PCB: 4 oz copper supports lower-resistance power distribution and higher current headroom than the installed XT60PW-M connector.
Technical Specifications
| Electrical | |
|---|---|
| Assembled-board current limit | 60 A, limited by the pre-soldered XT60PW-M connector |
| XT60PW-M short-duration maximum current | 120 A for less than 60 seconds |
| PCB current headroom | Higher than the installed XT60PW-M connector |
| Copper weight | 4 oz |
| Battery input connector | Pre-soldered XT60PW-M |
| Power-module connection | Pre-soldered XT60PW-M |
| ESC and auxiliary outputs | Four ESC power-output pads plus one auxiliary output pad; solder XT30PW-F connectors as required |
| Direct-wire solder pads | Provided on both sides of the board; use AWG wire appropriate for the intended current |
| Compatible power module | YARI 12S PAB Power Module |
| Mechanical | |
| Mounting-hole pattern | 30.5 × 30.5 mm |
| PCB weight | 12 g |
| Weight with all connectors | 19 g |
| Other | |
| Country of origin | India |
