Overview
The YARI F10N GNSS is a dual-band, standard-precision positioning and navigation module for DroneCAN-capable Pixhawk and ArduPilot systems. Rev 2 integrates a u-blox NEO-F10N L1 + L5 receiver, magnetometer, barometer, safety switch, buzzer, and status LEDs published over DroneCAN. It supports GPS, Galileo, BeiDou, and NavIC (IRNSS); it does not support GLONASS or provide RTK centimeter-level positioning.
Key Features
- GNSS receiver: u-blox NEO-F10N standard-precision dual-band (L1 + L5) receiver with concurrent GPS, Galileo, BeiDou, and NavIC (IRNSS) support. Includes anti-jamming/spoofing features and RF interference mitigation.

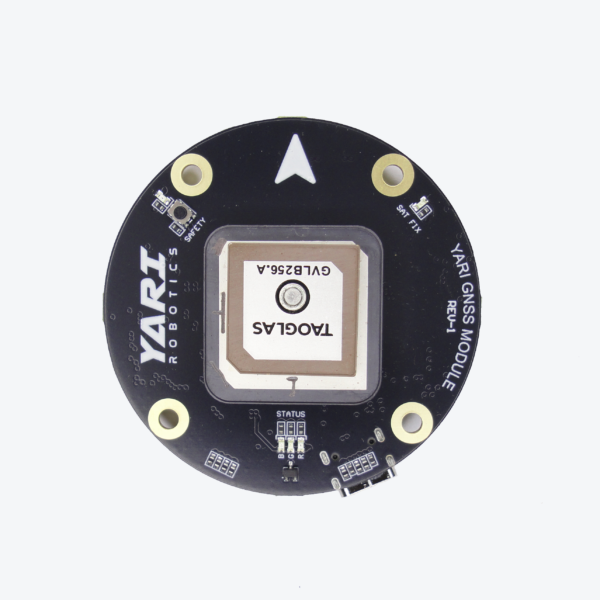

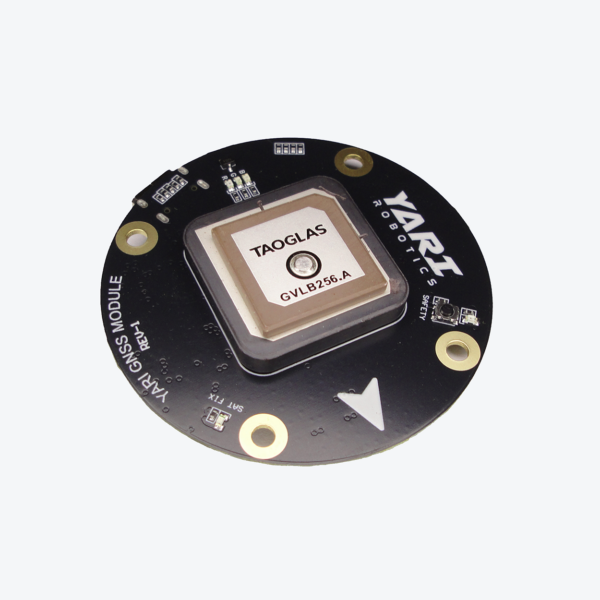

- Antenna: Taoglas ceramic patch antenna, compact 25 × 25 × 6 mm footprint, optimized for L1 and L5 bands, providing reliable signal quality in challenging environments.
- Enhanced RF front end: The F10N’s internal RF chain uses an L1/L5 dual-band diplexer SAW filter, LNA, and second-stage SAW filtering, plus an LTE Band 13 notch filter on L1. This SAW–LNA–SAW architecture with built-in LTE suppression rejects out-of-band signals and boosts GNSS sensitivity without requiring external RF components.
- Sensors: iSentek IST8310 magnetometer and Bosch BMP581 barometer.
- DroneCAN peripheral firmware: Open-source, plug-and-play operation with Pixhawk, Cube, Durandal, and any DroneCAN-compatible flight controller.
- Built-in safety and feedback: Tactile safety button, buzzer, and multiple status LEDs for satellite fix, system status, and safety.
- USB-C port: Direct u-center 2 access without opening the enclosure.

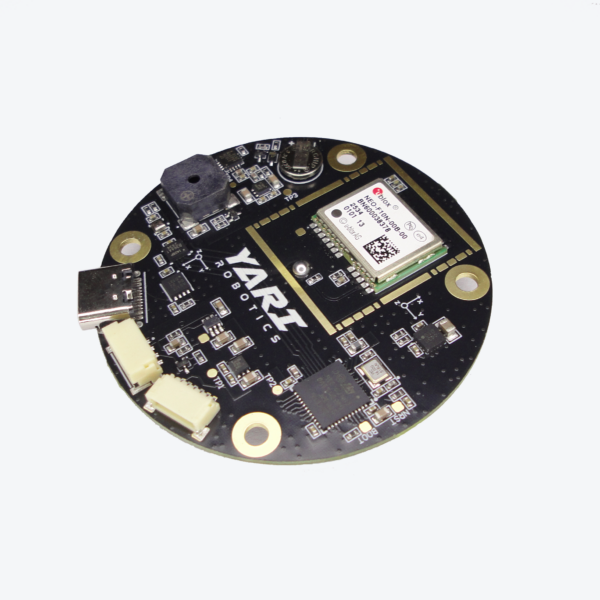

- Standard Pixhawk connectors: 1× CAN (4-pin JST-GH), 1× Debug (6-pin JST-SH), and 1× USB-C.
Technical Specifications
| Sensors and Processing | |
|---|---|
| GNSS receiver | u-blox NEO-F10N |
| Antenna | Taoglas GVLB256.A |
| Magnetometer | iSentek IST8310 |
| Barometer | Bosch BMP581 |
| MCU | STM32F412 |
| Indicators | Safety LED GNSS Sat-Fix LED RGB Status LED |
| Built-ins | Safety switch and buzzer |
| Interfaces | |
| DroneCAN | 1× Pixhawk Standard CAN (4-pin JST-GH) |
| Debug | 1× Pixhawk Standard Debug (6-pin JST-SH) |
| USB | 1× USB-C for u-center 2 configuration |
| Electrical and Environmental | |
| Supply voltage | 5 V |
| Current | 110 mA average 117 mA maximum |
| Operating temperature | -25 to +85 °C |
| Mechanical | |
| Dimensions | 60 mm × 60 mm × 15 mm |
| Weight | 30 g |
| Other | |
| Country of origin | India 🇮🇳 |
GNSS Performance & Bands
| Position accuracy | 1.0 m CEP typical |
| Velocity accuracy | 0.05 m/s typical |
| Maximum navigation update rate | 10 Hz |
| Time to first fix | Cold start: 28 s Hot start: 2 s |
| Tracked satellites | 22+ |
| Sensitivity | Tracking: -167 dBm Cold/hot start: -148 dBm Reacquisition: -160 dBm |
| Frequency bands | GPS: L1 C/A + L5 Galileo: E1 B/C + E5a BeiDou: B1C + B2a NavIC: L5 |
Package Includes
- 1× YARI GNSS module
- 1× 4-pin Pixhawk Standard CAN cable
Documentation
https://docs.yarirobotics.com/products/gnss-modules/yari-f10n-gnss/
