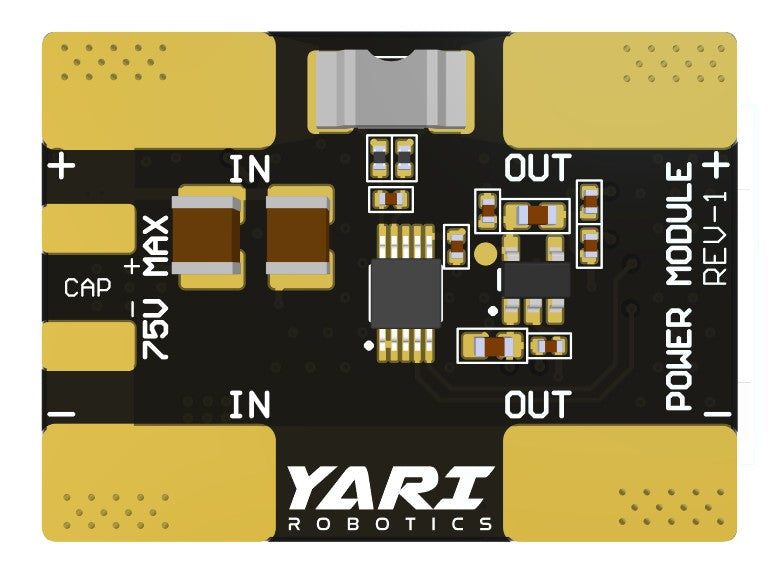

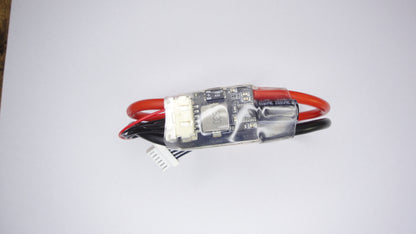

The YARI Power Module (3-12S) is a compact, high-reliability power module for drones, rovers, and unmanned systems using Pixhawk Autopilot Bus (PAB) carrier boards. It delivers a stable 5.2 V / 6 A regulated rail while pass-throughing main battery power, and comes with Digital Power Monitoring for Pixhawk Autopilot Bus (PAB) based carrier boards.
Key Highlights
- Clean 5.2 V regulated output up to 6 A for avionics and peripherals.
- Onboard TI INA238 power monitor with precision 0.0005 Ω shunt for accurate telemetry.
- Wide battery input range (3–12S) with design ceiling up to 75 V.
- PCB power path rated 60 A continuous and 100 A burst (< 1 min).

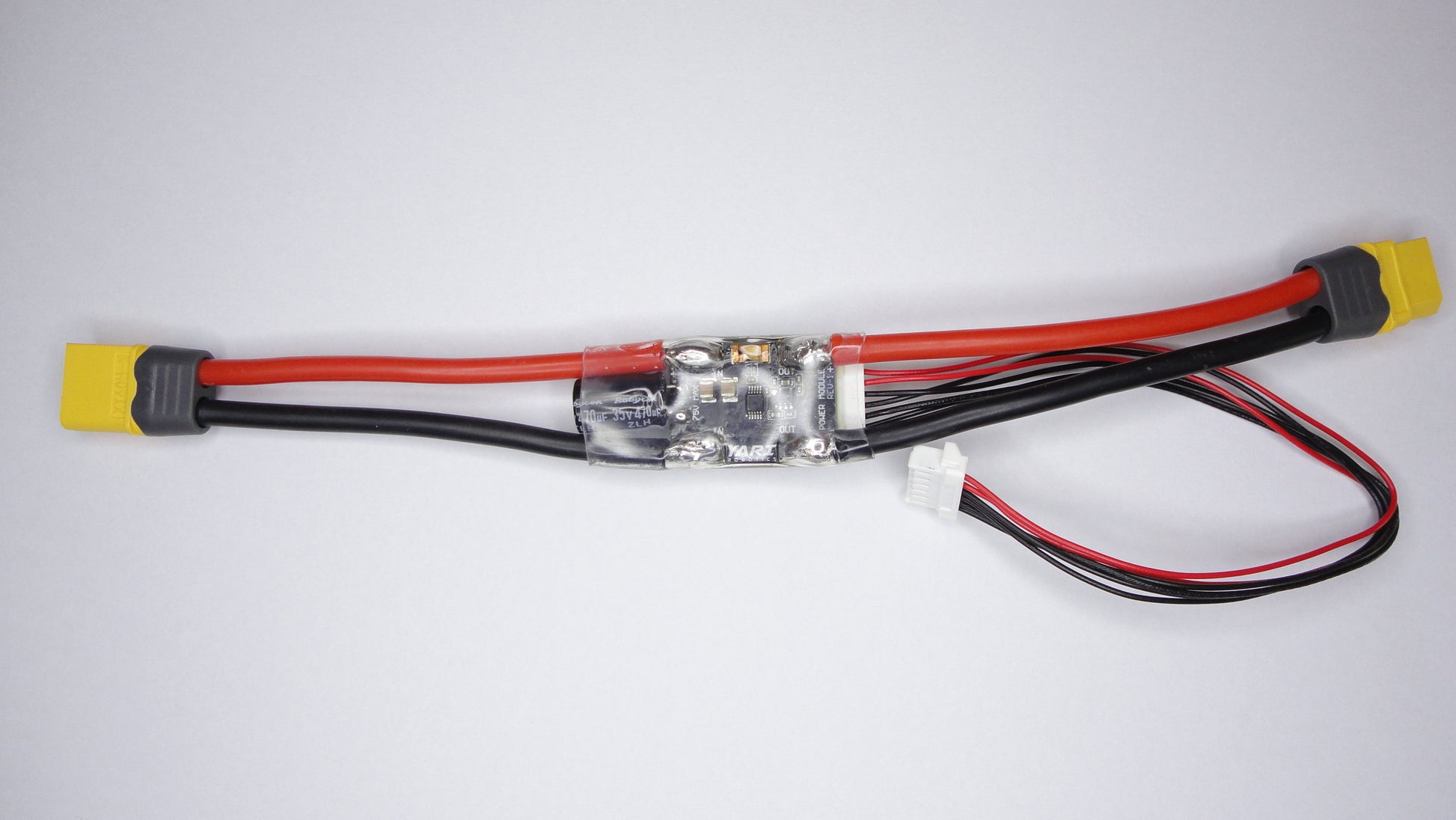

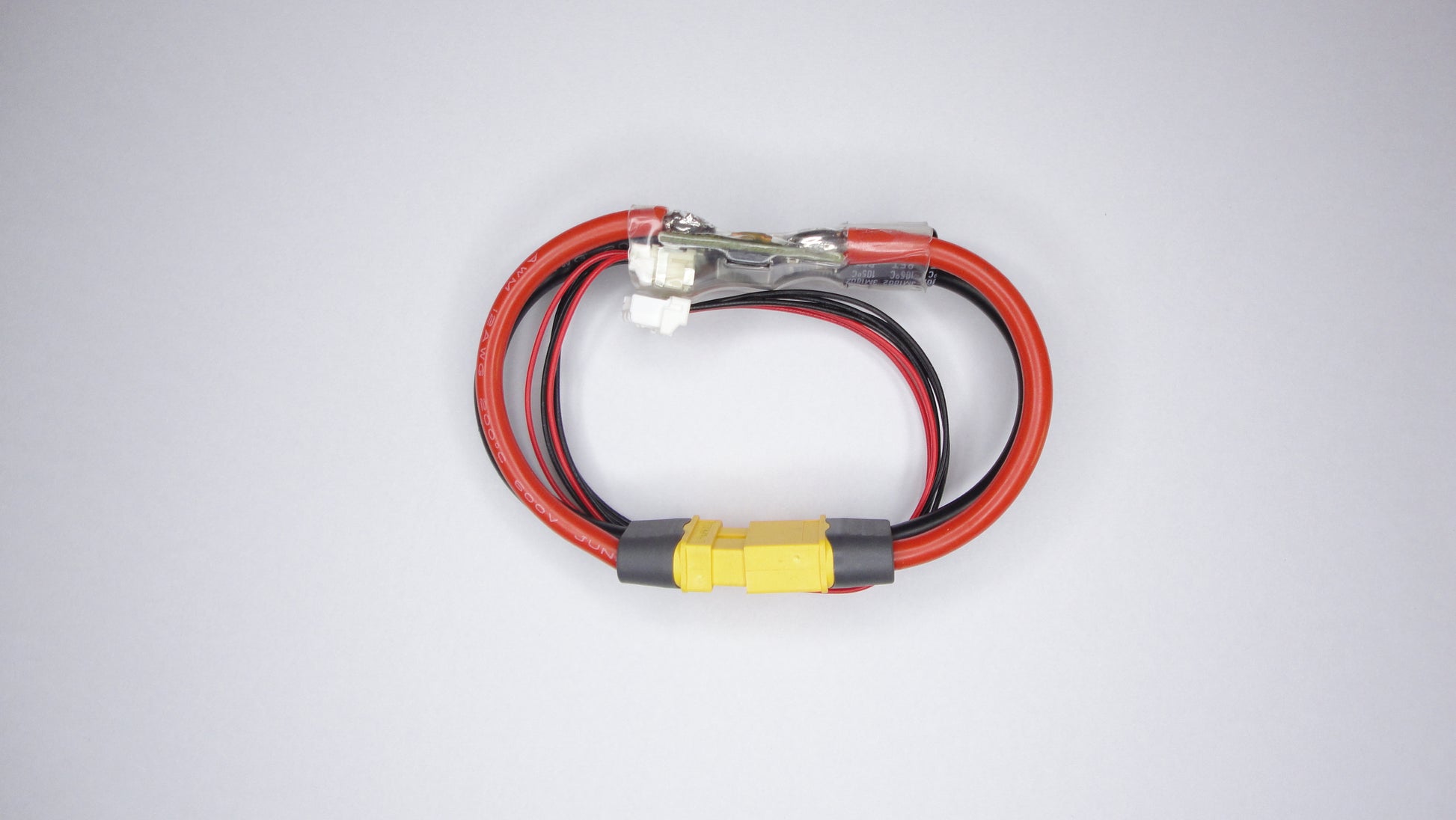

- Designed for 35 A continuous and 60 A burst (< 1 min) with pre-installed XT60H connectors and 12 AWG leads.

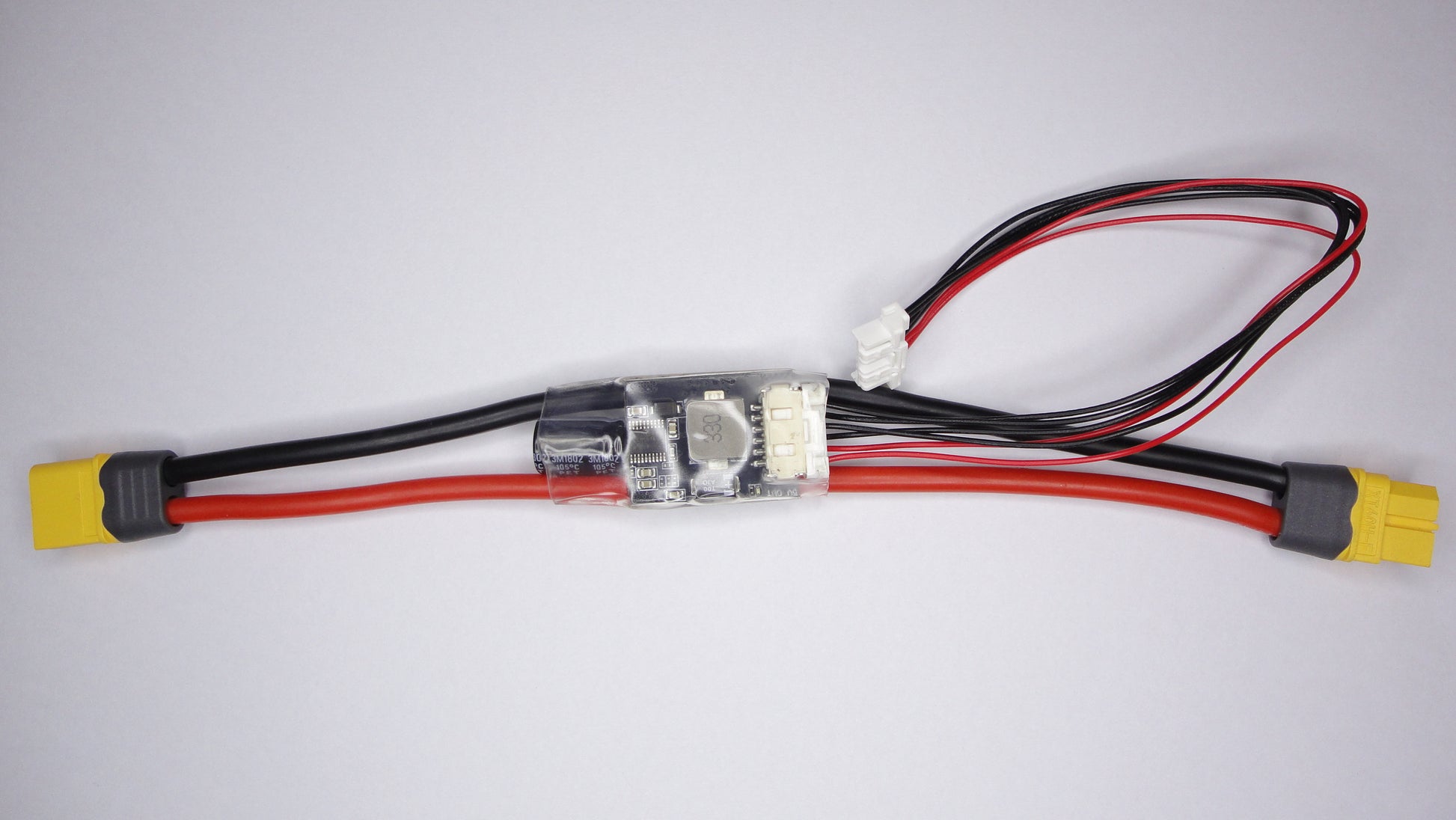

- Plug-and-play with XT60H battery connectors and 6-pin Molex CLIK-Mate main output.

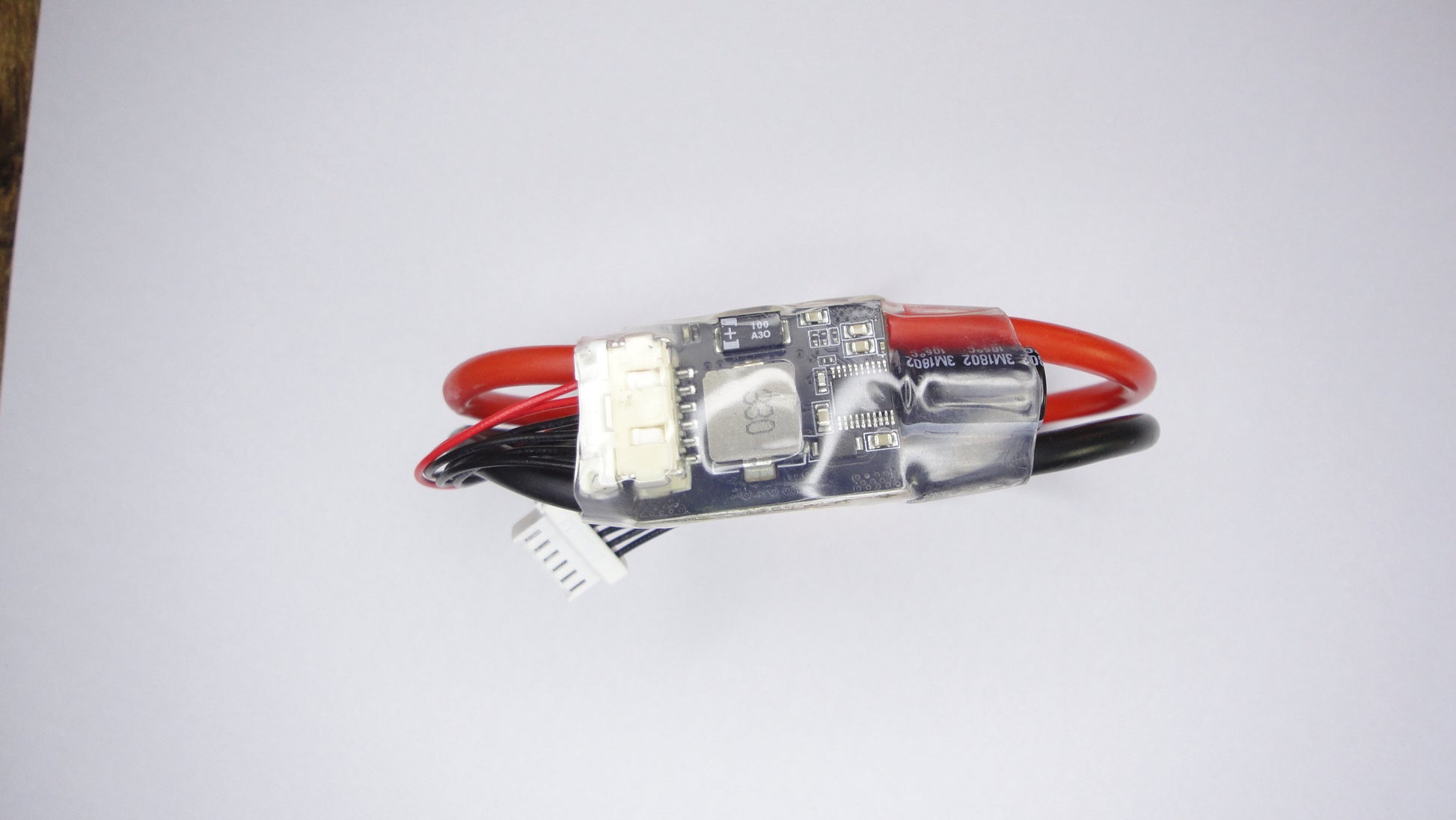

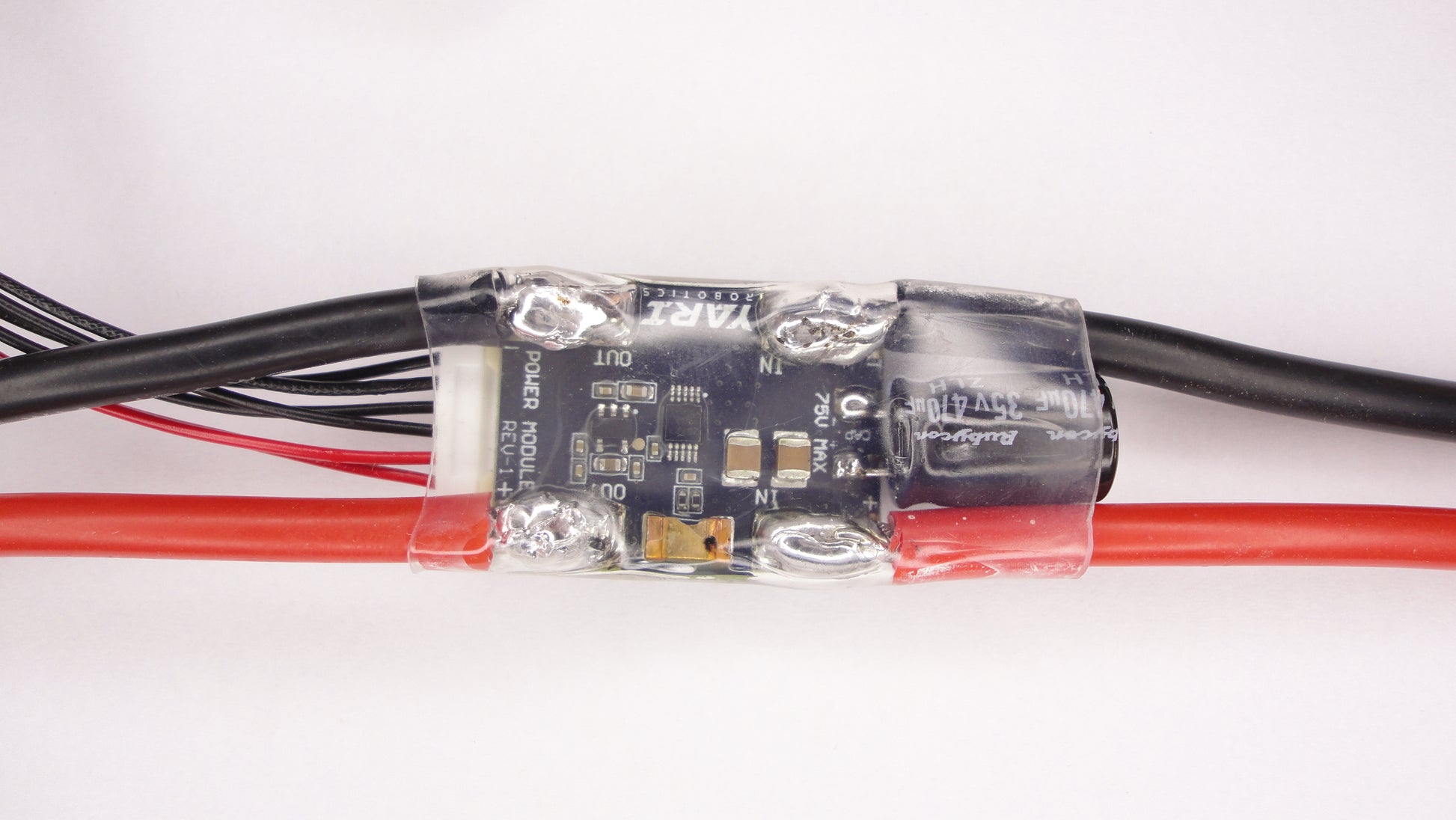

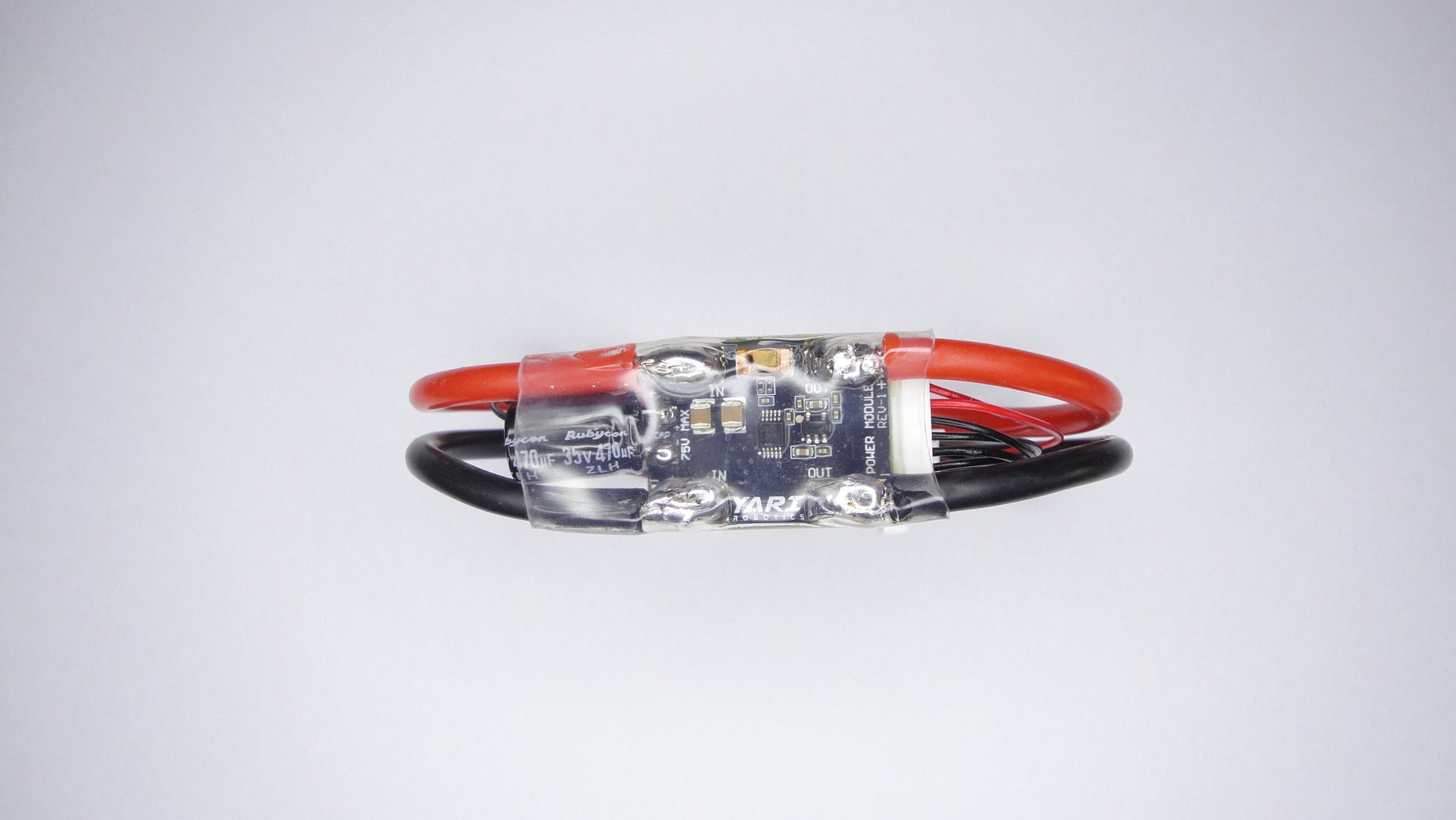

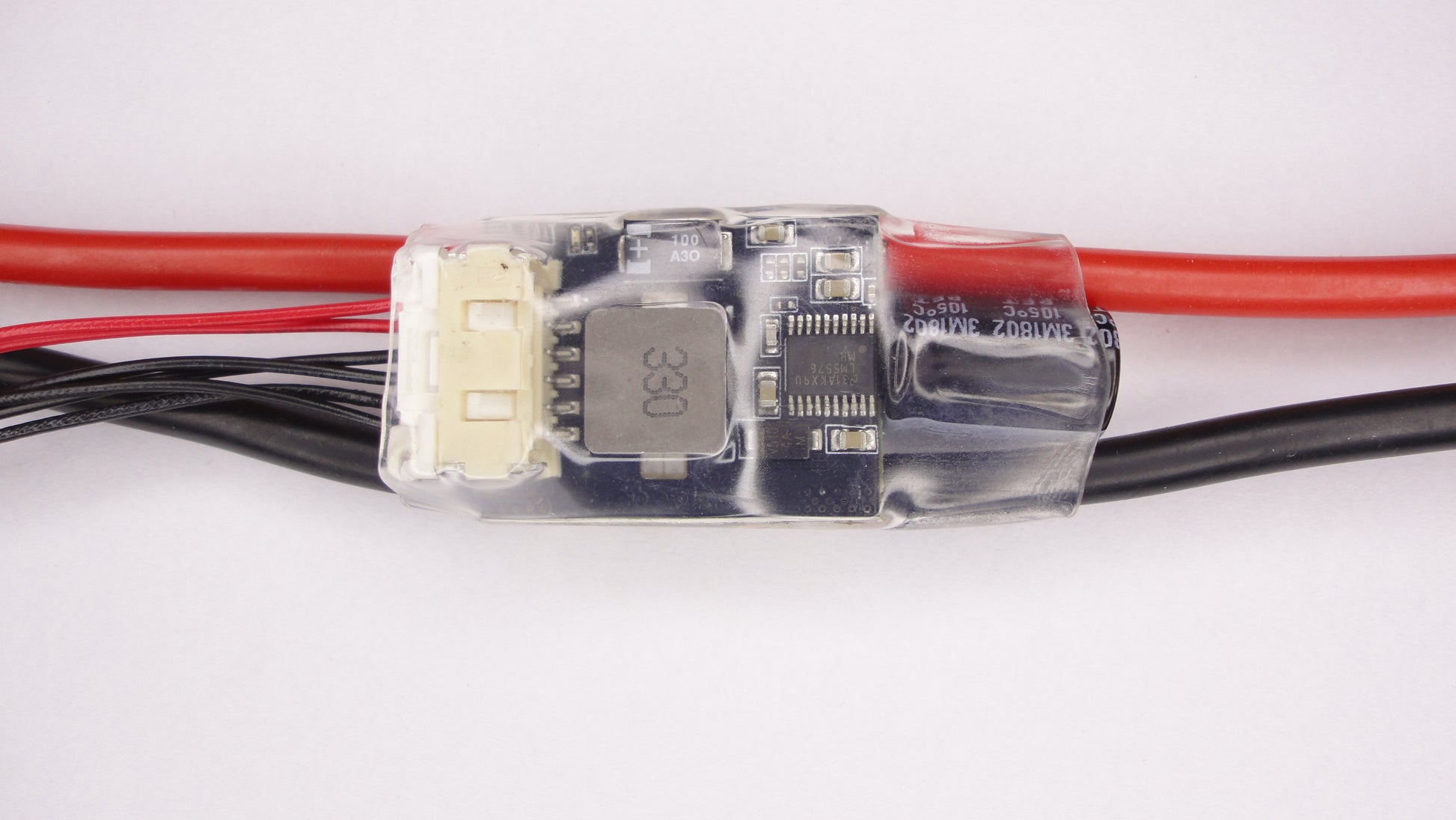

- Transparent heat-shrink wrap pre-applied for PCB protection without adding bulk.
- Basic output over-current protection on the regulated rail.
Technical Specifications
| Interface | |
| Telemetry Interface | I2C |

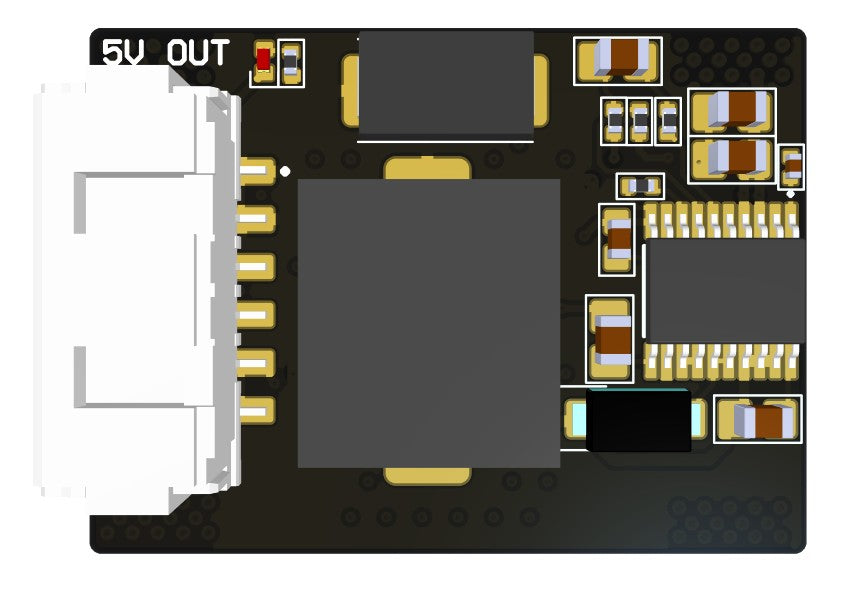

| Main Output Connector | 6-pin Molex CLIK-Mate (2.00 mm pitch) |
| Battery Connections | XT60H (input and output) |
| Electrical | |
| Regulated Output | 5.2 V |
| Maximum Output Current | 6 A |
| Input Voltage (maximum) | 75 V (up to 12S battery packs) |
| Input Voltage (minimum at 6 A out) | 10 V |
| Power Monitor | TI INA238 with 0.0005 Ω shunt |
| Protection | Output over-current (regulated rail) |
| PCB Power Path Rating | 60 A continuous / 100 A burst (< 1 min) |
| XT60H + 12 AWG Lead Rating | 30 A continuous / 60 A burst (< 1 min) |
| Mechanical | |
| Dimensions | TBD |
| Weight | TBD |
| Other | |
| Country of Origin | India 🇮🇳 |
Note: Continuous and burst current limits depend on connectors, wire gauge, airflow, and thermal conditions. Verify suitability for your platform and mission profile.
Package includes
- 1× YARI PAB Power Module
- 1× 6-pin Molex CLIK-Mate cable
