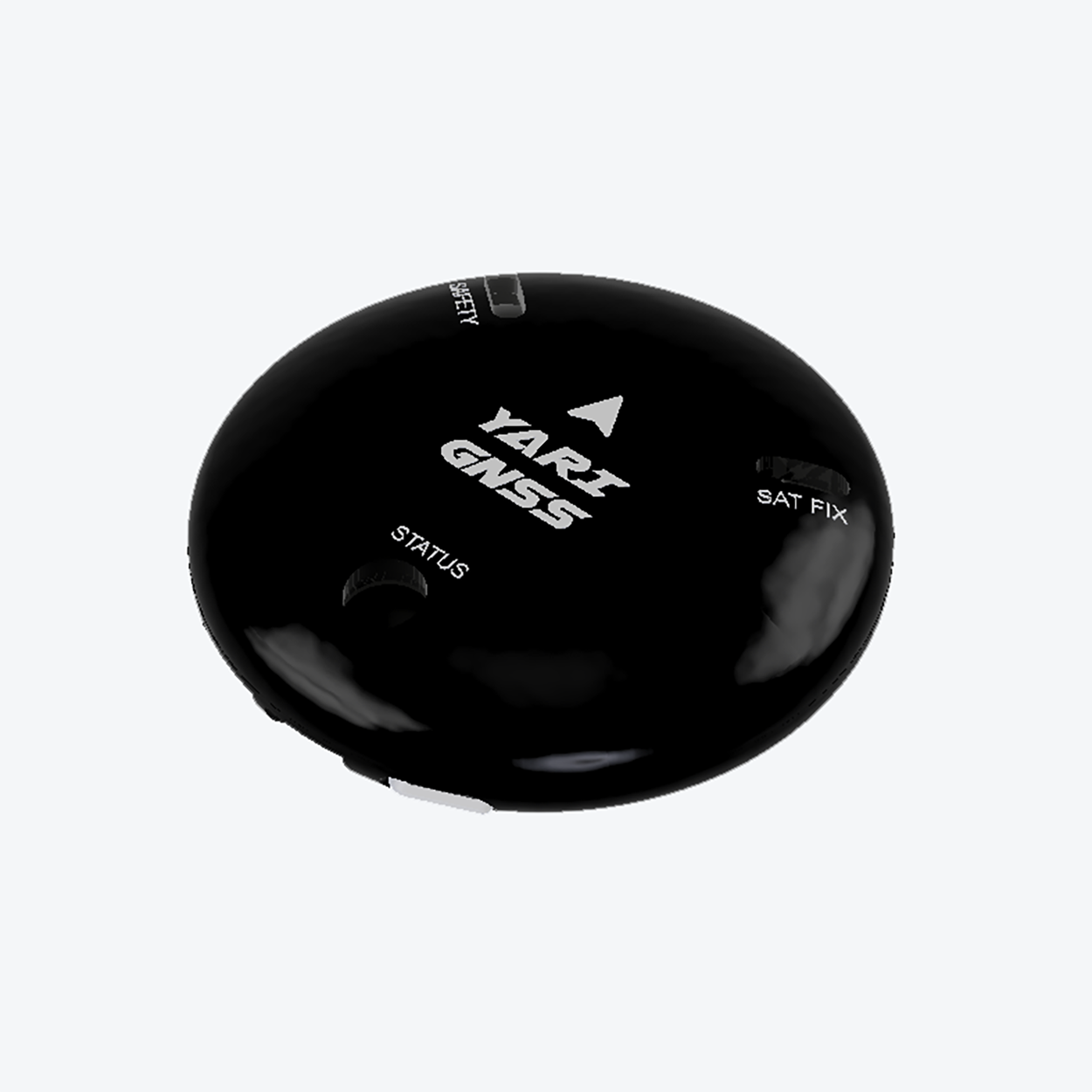

All-in-one positioning and navigation node for Pixhawk/ArduPilot systems. Combines a u-blox NEO-M9N multi-constellation single band (L1) GNSS with onboard magnetometer, barometer, IMU, safety switch, buzzer, and status LEDs over DroneCAN. Includes a USB-C connector for direct access to u-blox u-center software for configuration and logging. Suitable for UAVs, robotics, and mapping platforms where robust GNSS and rich onboard sensing are required.
Key Highlights
-
GNSS receiver: Ublox NEO-M9N standard precision meter-level positioning (up to 0.7 m), concurrent GPS, Galileo, GLONASS, and BeiDou, plus anti-jamming/spoofing and RF interference mitigation.
-

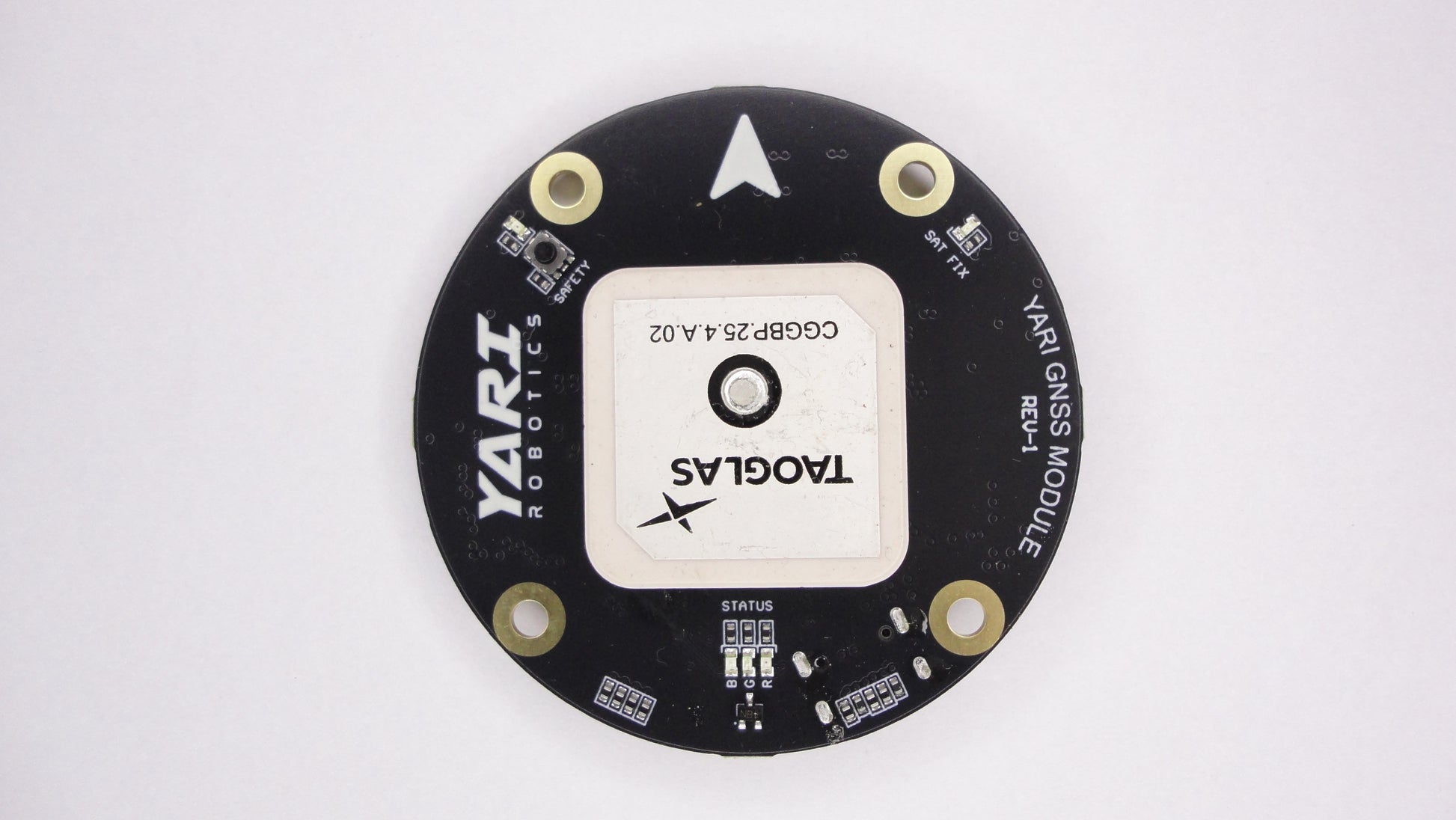

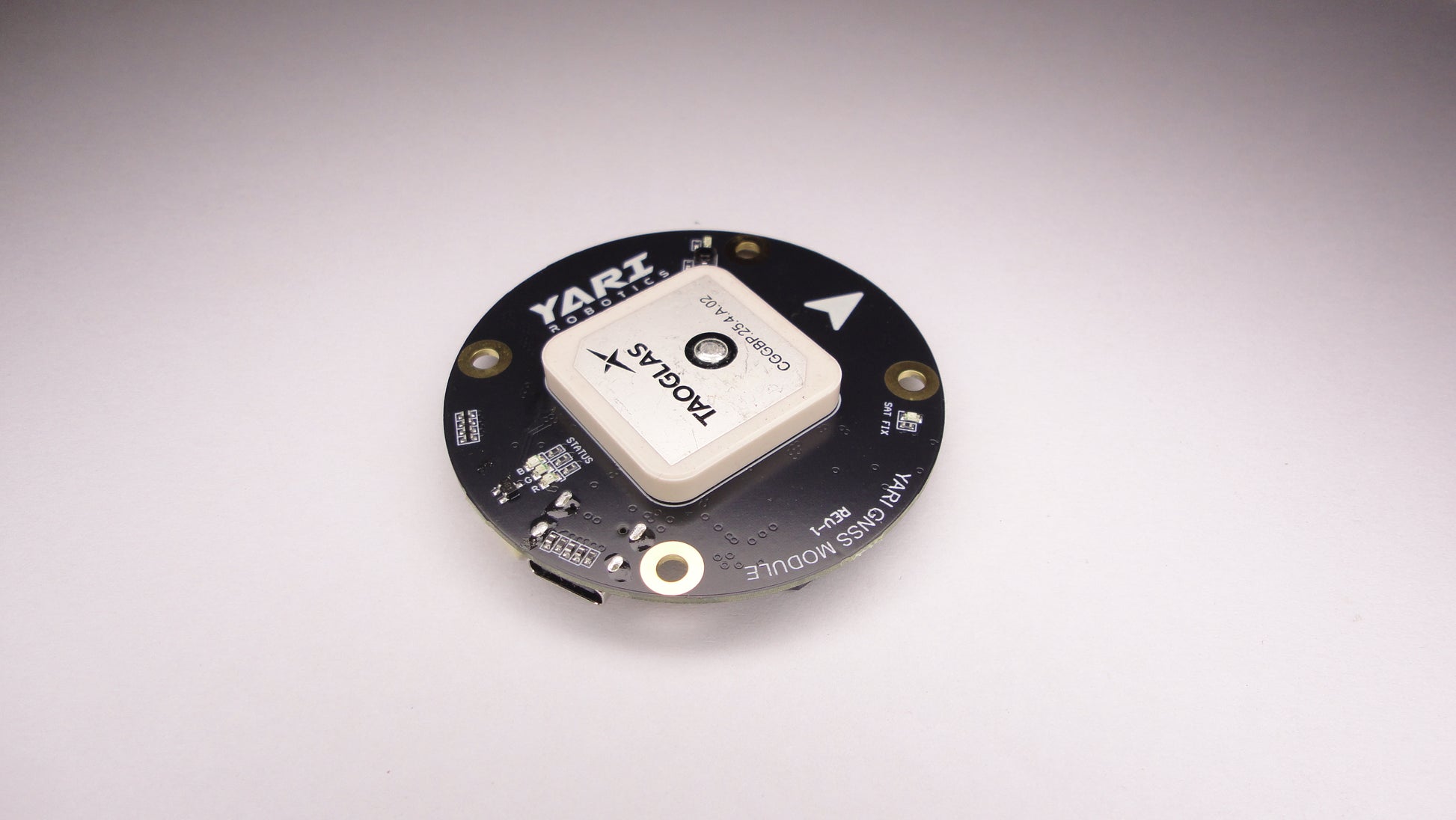

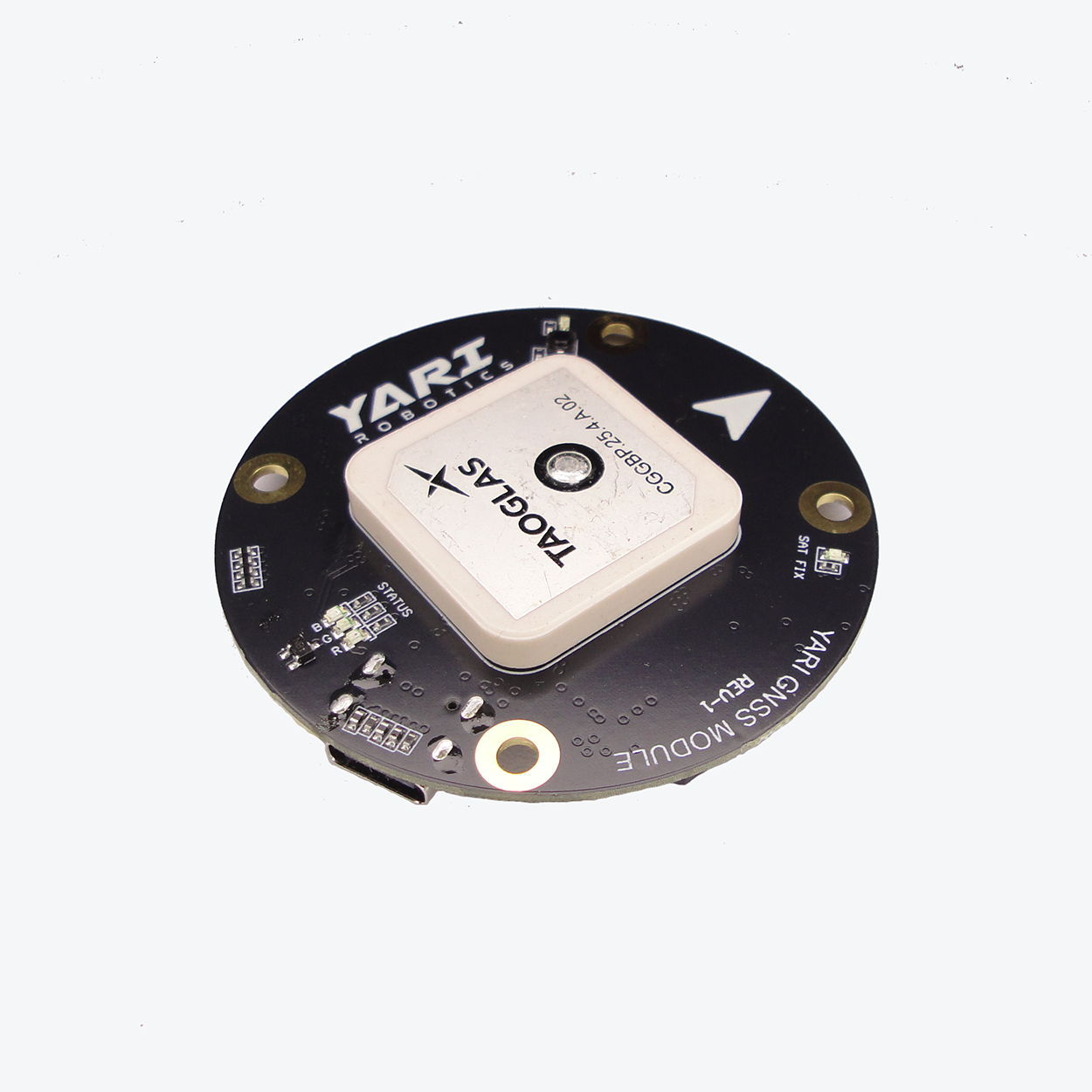

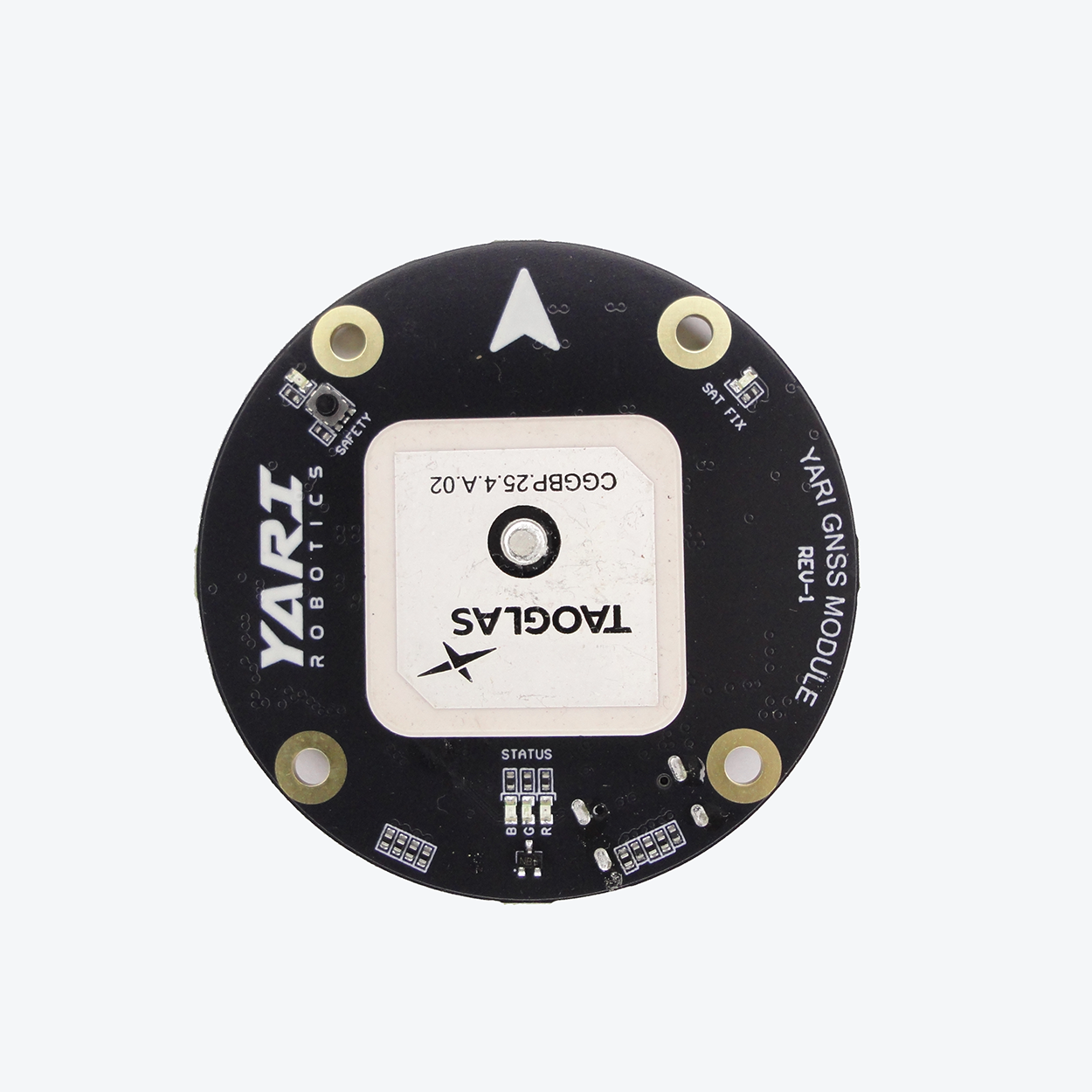

Antenna: Taoglas ceramic patch antenna, Optimized for L1 bands, delivering reliable positioning accuracy in a compact 25 × 25 × 4 mm ceramic form factor.
-
RF front end: external dual filters (LNA + SAW) for improved interference rejection
-
Integrated sensors: iSentek IST8310 magnetometer, InvenSense ICP-20100 barometer, InvenSense ICM-42688-P 6-axis IMU
-
Open-source and flexible: runs ArduPilot peripheral firmware over DroneCAN for plug-and-play with Pixhawk and other DroneCAN-enabled flight controllers
-
Safety and feedback: tactile safety switch, buzzer, and LEDs for safety, satellite fix, and system status
-
USB-C port: Access u-center for quick configuration and data access without disassembly
-

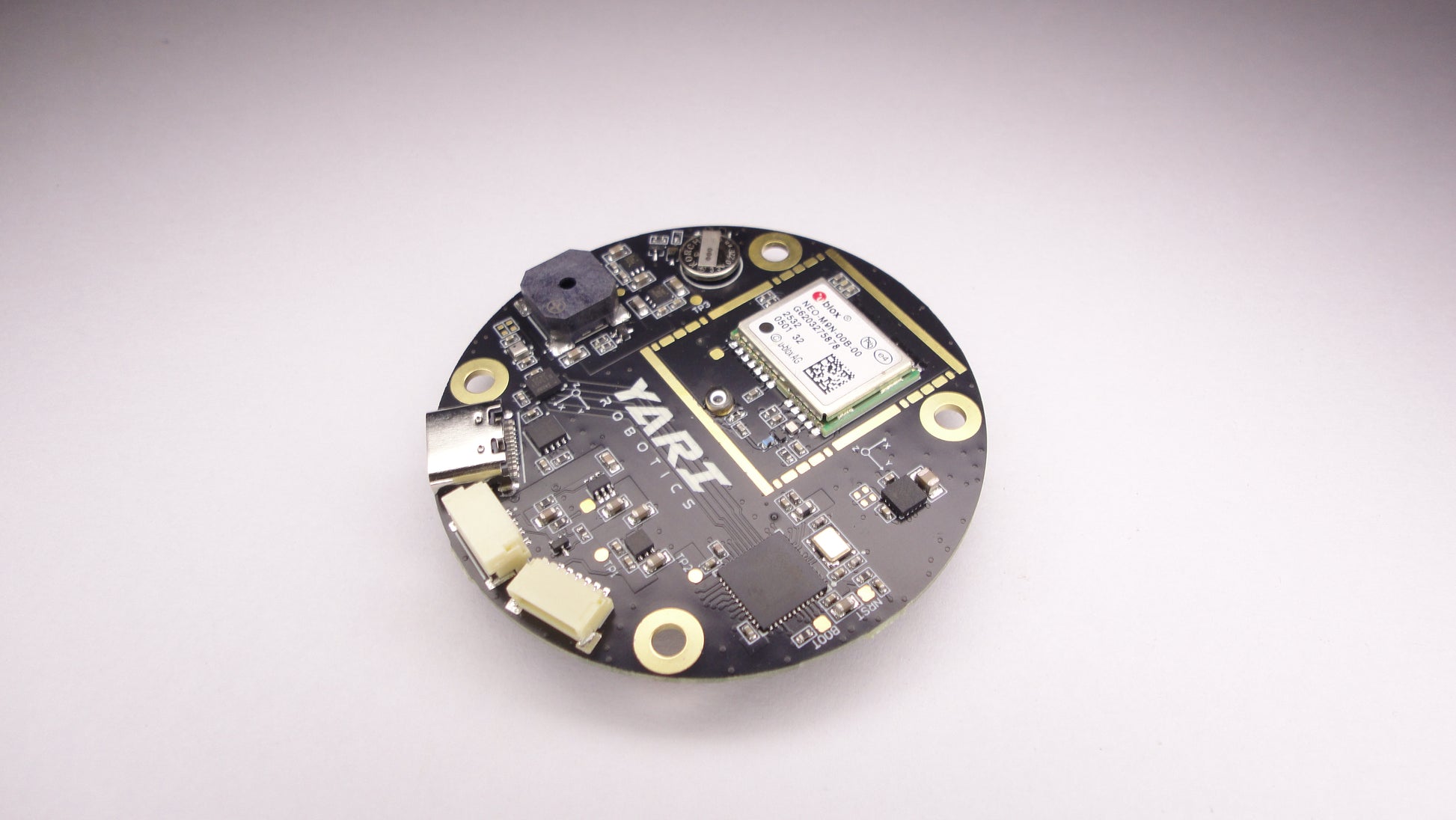

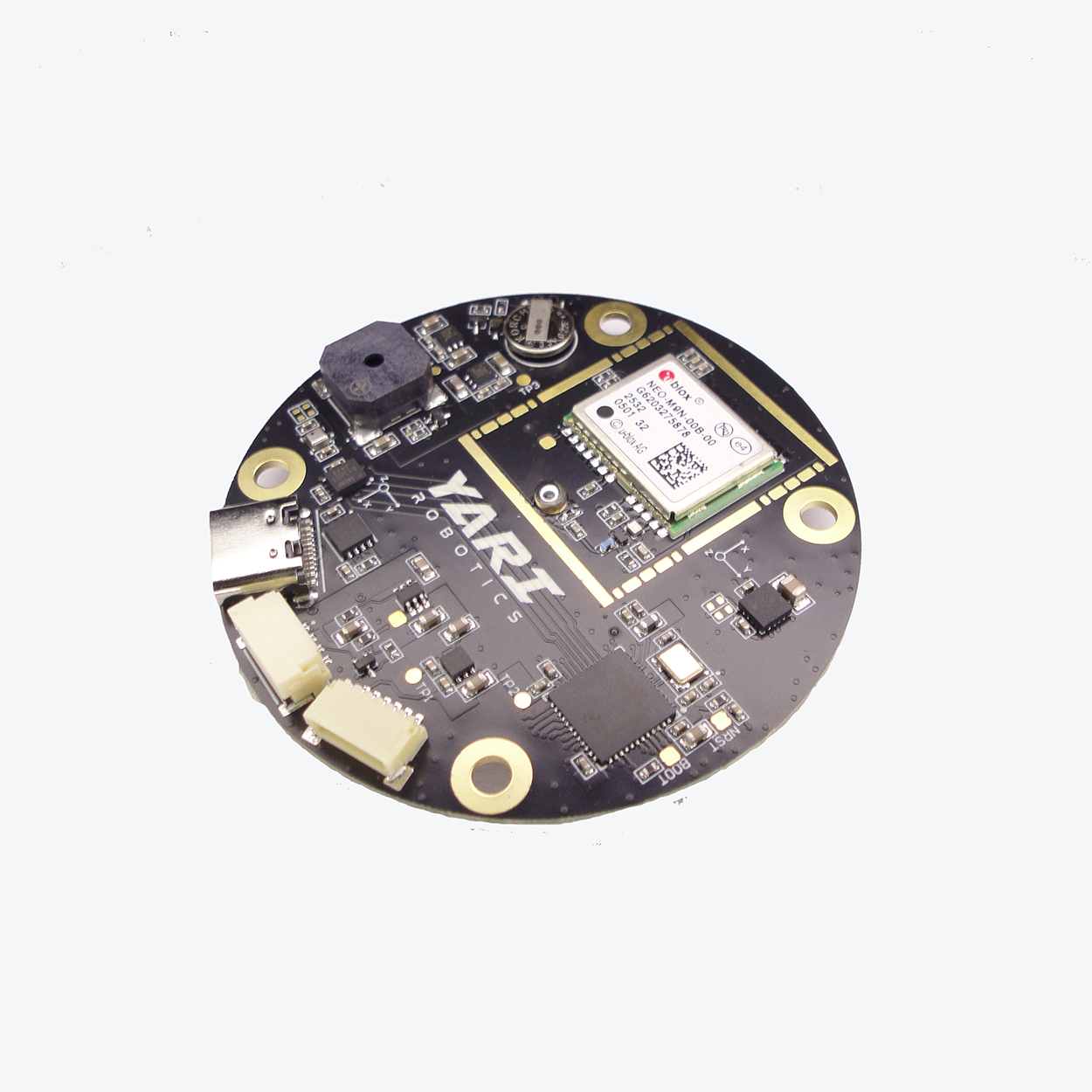

Standard connectors: Pixhawk Standard CAN (4-pin JST-GH), Pixhawk Standard Debug (6-pin JST-SH), and USB-C
Technical Specifications
| Sensors and Processing |
| GNSS Receiver |
u-blox M9N |
| Antenna |
Taoglas CGGBP.25.4.A.02 |
| Magnetometer |
iSentek IST8310 |
| Barometer |
InvenSense ICP-20100 |
| IMU |
InvenSense ICM-42688-P (6-axis) |
| MCU |
STM32F412CEU6 |
| Indicators |
Safety LED, GNSS Sat-Fix, RGB System Status |
| Built-ins |
Safety switch and buzzer |
| Interfaces |
| DroneCAN |
1× Pixhawk Standard CAN, 4-pin JST-GH |
| Debug |
1× Pixhawk Standard Debug, 6-pin JST-SH |
| USB |
1× USB-C for u-center configuration |
| Electrical and Environmental |
| Supply Voltage |
5 V |
| Current |
110 mA average, 117 mA max |
| Operating Temperature |
−25 to +85 °C |
| Mechanical |
| Dimensions |
60 (L) × 60 (W) × 15 (H) mm |
| Weight |
30g |
| Other |
| Country of Origin |
India 🇮🇳 |
GNSS performance and bands
| Accuracy (best) |
up to 0.7 m |
| Horizontal accuracy |
2.0 m |
| Speed accuracy |
0.05 m/s |
| Navigation update rate |
up to 25 Hz |
| Acquisition |
Cold start 24 s; hot start 2 s; aided start 2 s |
| Satellites (max) |
32+ |
| Sensitivity |
Tracking/navigation −167 dBm; cold/hot start −148 dBm; reacquisition −160 dBm |
| Frequency bands |
GPS L1 C/A; GLONASS L1OF; BeiDou B1I; Galileo E1B/C |
Package includes
- 1× YARI GNSS module
- 1× 4-pin Pixhawk Standard CAN cable
- 1× GNSS module stand
