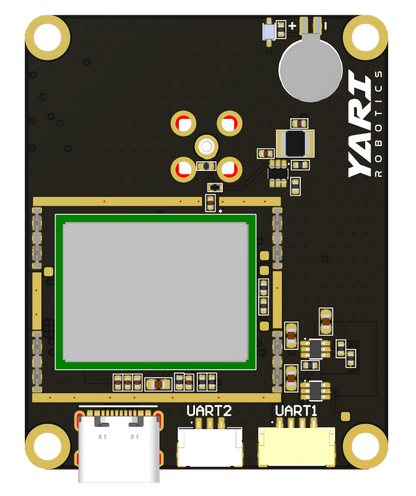

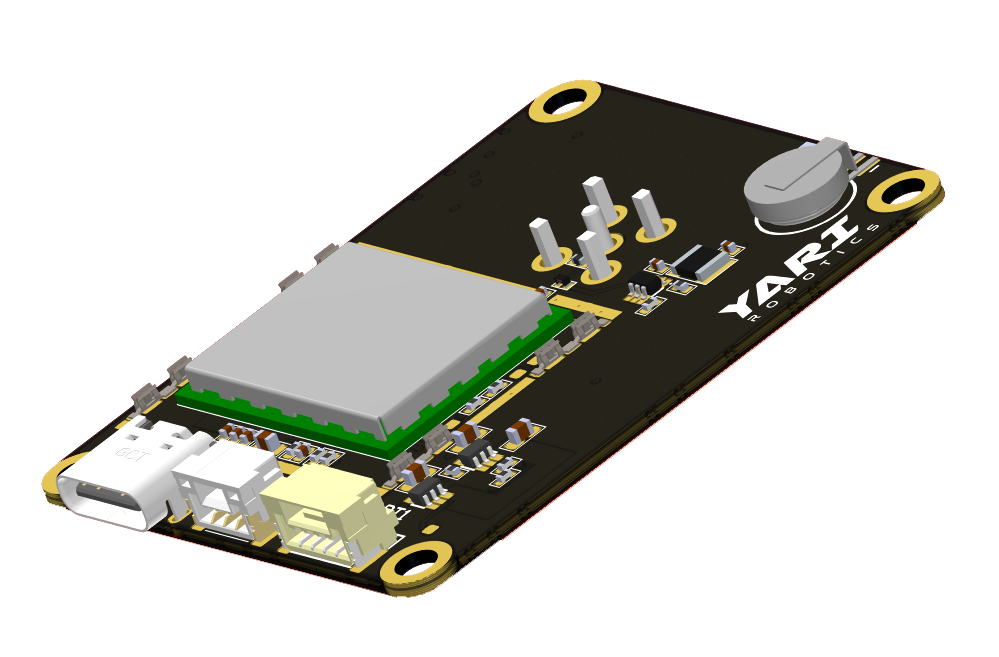

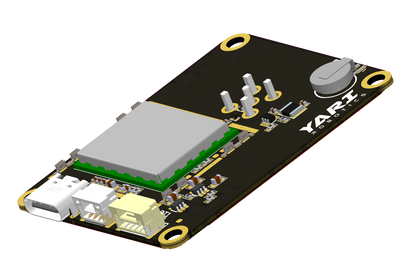

Equipped with a u-blox ZED-F9P multi-band (L1/L2) high-precision GNSS receiver and status LEDs, this unit provides reliable centimeter-level correction data for RTK rover systems. It supports standard RTK base features such as survey-in and fixed-position modes, enabling stable and repeatable reference positioning. Ideal for UAV operations, ground robotics, mapping workflows, and any system requiring a dependable RTK correction source over radio, telemetry, or NTRIP. Can be used as an RTK Fixed Base, Moving Base, or Rover.
Key Highlights
-
GNSS receiver: u-blox ZED-F9P multi-band (L1/L2) GNSS delivering centimeter-level accuracy in seconds, concurrent GPS/GLONASS/Galileo/BeiDou reception, fast multi-band RTK convergence, high update rates for dynamic applications, energy-efficient operation, and support for moving-base RTK heading.
-

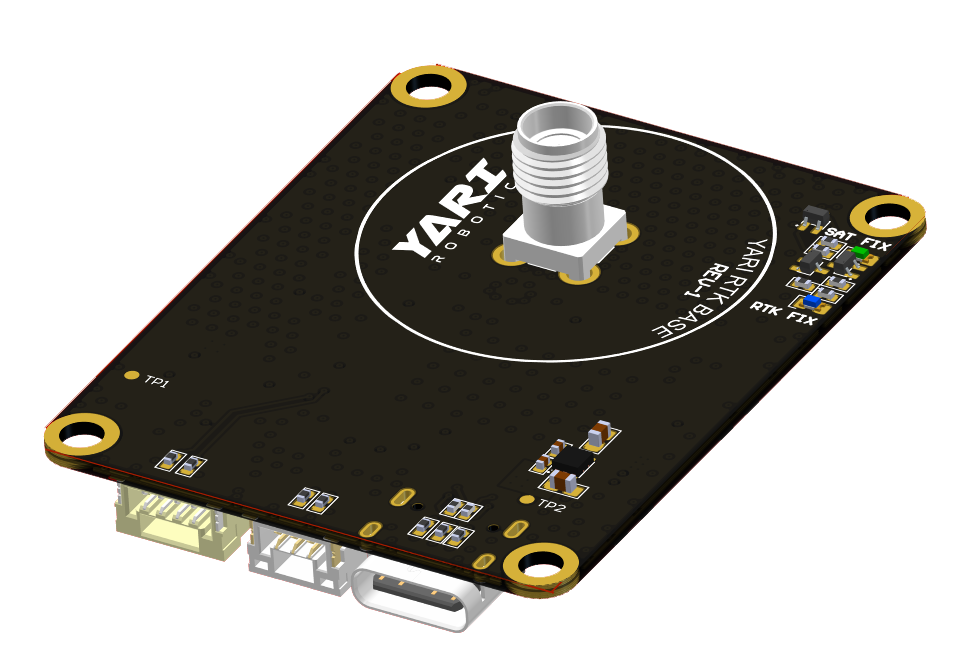

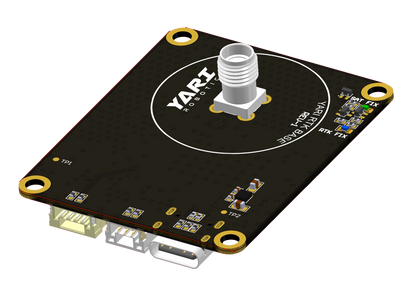

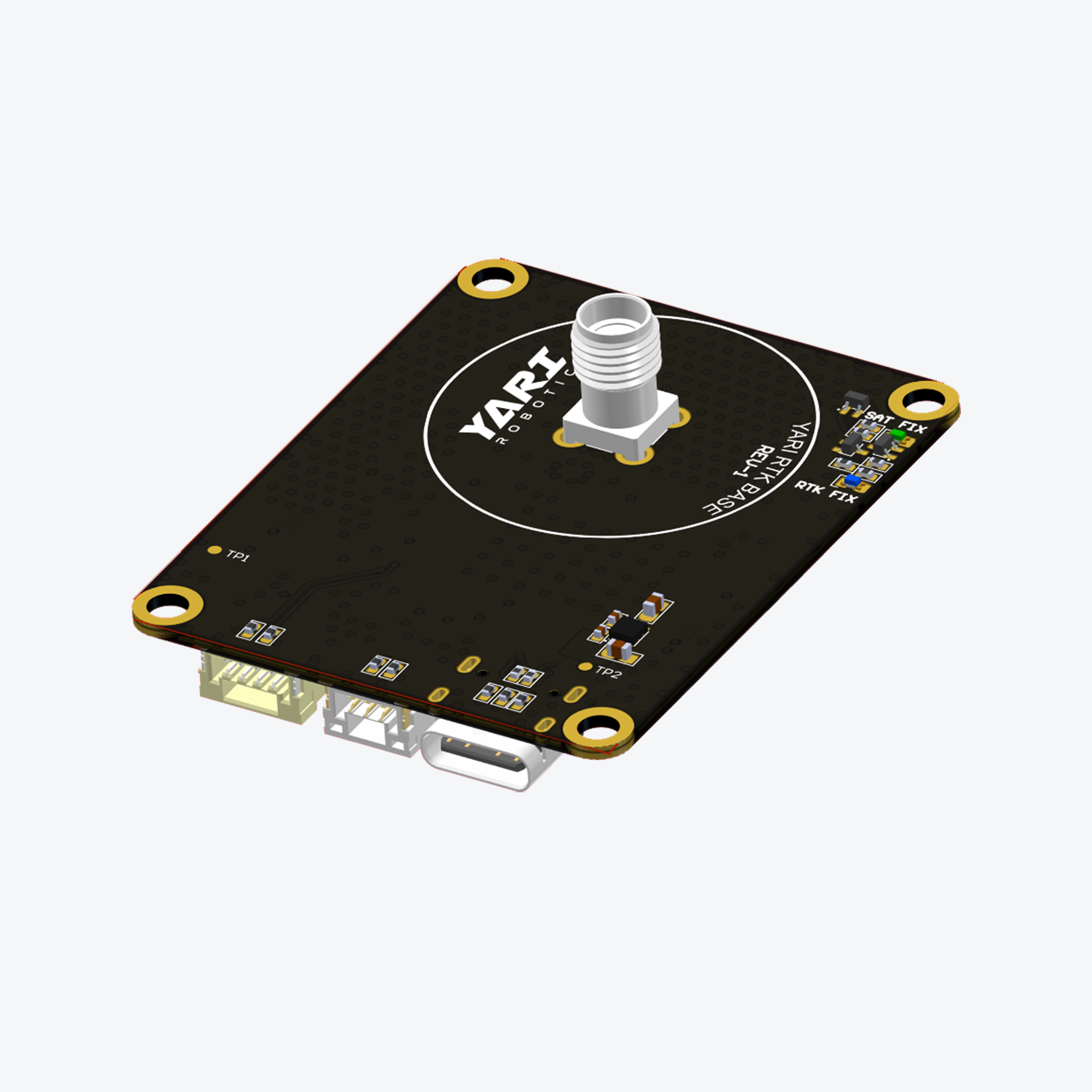

Antenna: High-performance helical GNSS antenna (dual/tri-band) connected via a standard SMA connector. Supports direct attachment of antennas up to 27.5 mm diameter; larger or external antennas may be connected using an SMA extension cable.
- RF front end: Uses the integrated u-blox ZED-F9P RF architecture, featuring built-in low-noise amplification, filtering, and advanced multi-band signal processing for robust RTK performance.
- Open-source and flexible: Runs ArduPilot-compatible DroneCAN peripheral firmware for plug-and-play operation with Pixhawk and other DroneCAN-enabled flight controllers.
-
USB-C port: Provides direct access to u-center for configuration, data logging, and firmware updates.

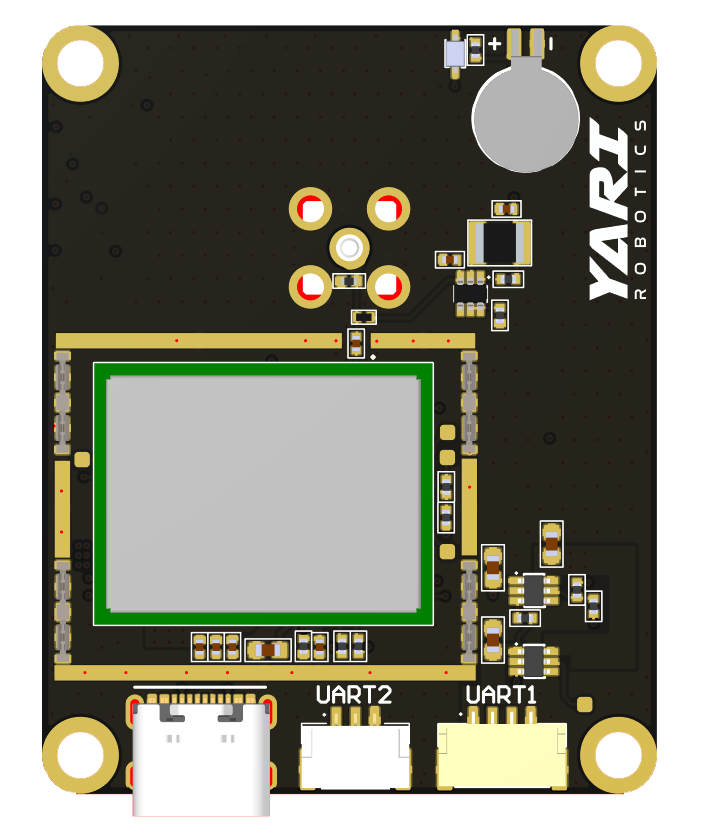

- Standard connectors: Pixhawk Standard UART (4-pin JST-GH), Pixhawk Standard Debug (6-pin JST-SH), and USB-C.
Technical Specifications
| Sensors and Processing | |
|---|---|
| GNSS Receiver | u-blox ZED-F9P |
| Antenna | Helical GNSS antenna (L1/L2/L5) |

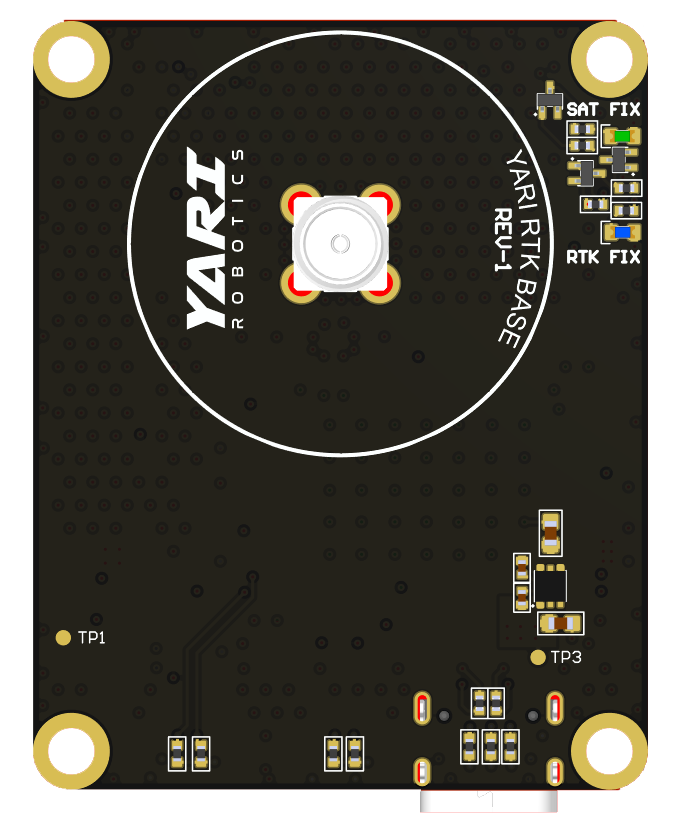

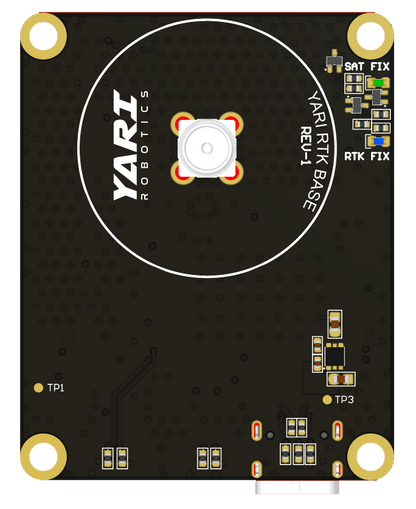

| Indicators | GNSS Sat-Fix RTK Status |
| Interfaces | |
| DroneCAN | 1× Pixhawk Standard UART, 4-pin JST-GH |
| UART2 (F9P) | 1× 3-pin JST-GH |
| USB | 1× USB-C for u-center configuration |
| Electrical and Environmental | |
| Supply Voltage | 5 V |
| Current | 120 mA average 150 mA max |
| Operating Temperature | −25 to +85 °C |
| Mechanical | |
| Dimensions | 50 (L) × 40 (W) × ? (H) mm |
| Weight | ? |
| Other | |
| Country of Origin | India 🇮🇳 |
GNSS performance and bands
| Accuracy (best) | Horizontal accuracy (GNSS only): 1.0 m CEP (typical) Horizontal accuracy (RTK fixed): ~1 cm + 1 ppm (CEP) |
| Speed accuracy | 0.05 m/s |
| Navigation update rate | up to 25 Hz |
| Acquisition | Cold start 24s Hot start 2s Aided start 2s |
| Satellites (max) | 32+ |
| Sensitivity | Tracking/navigation −167 dBm Cold/hot start −148 dBm Reacquisition −160 dBm |
| Frequency bands | GPS: L1 C/A, L2C GLONASS: L1OF, L2OF BeiDou: B1I, B2I Galileo: E1B/C, E5b QZSS: L1 C/A, L2C, L5 (supported when available) SBAS: L1 (WAAS/EGNOS/MSAS/GAGAN) |
Package includes
- 1× YARI RTK BASE module
- 1× Tri Band (L1/L2/L5) Helical GNSS Antenna
- 1× 4-pin Pixhawk Standard UART cable
- 1× 4-pin to 6-pin UART cable
- 1× 3-pin JST-GH cable
