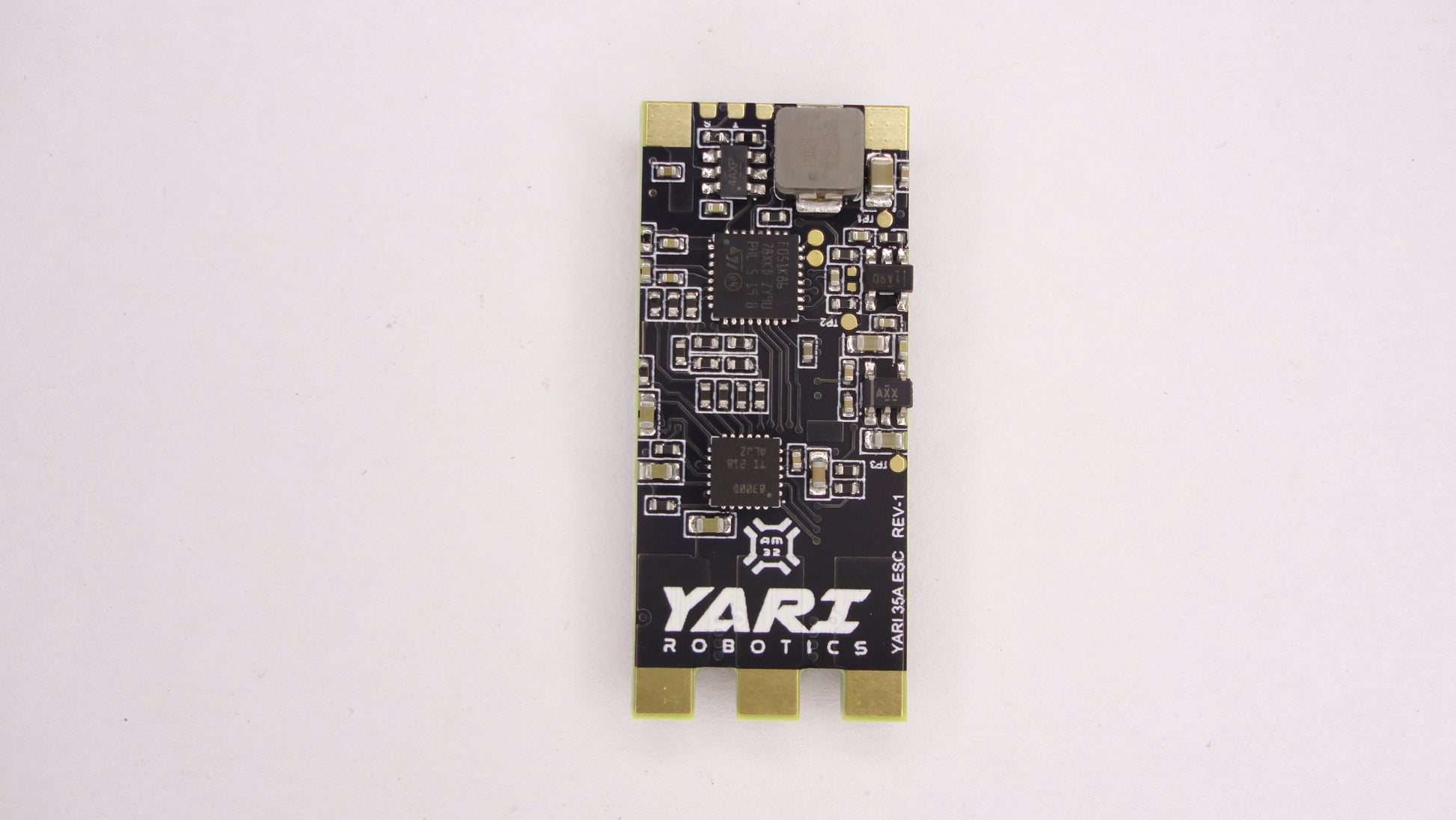

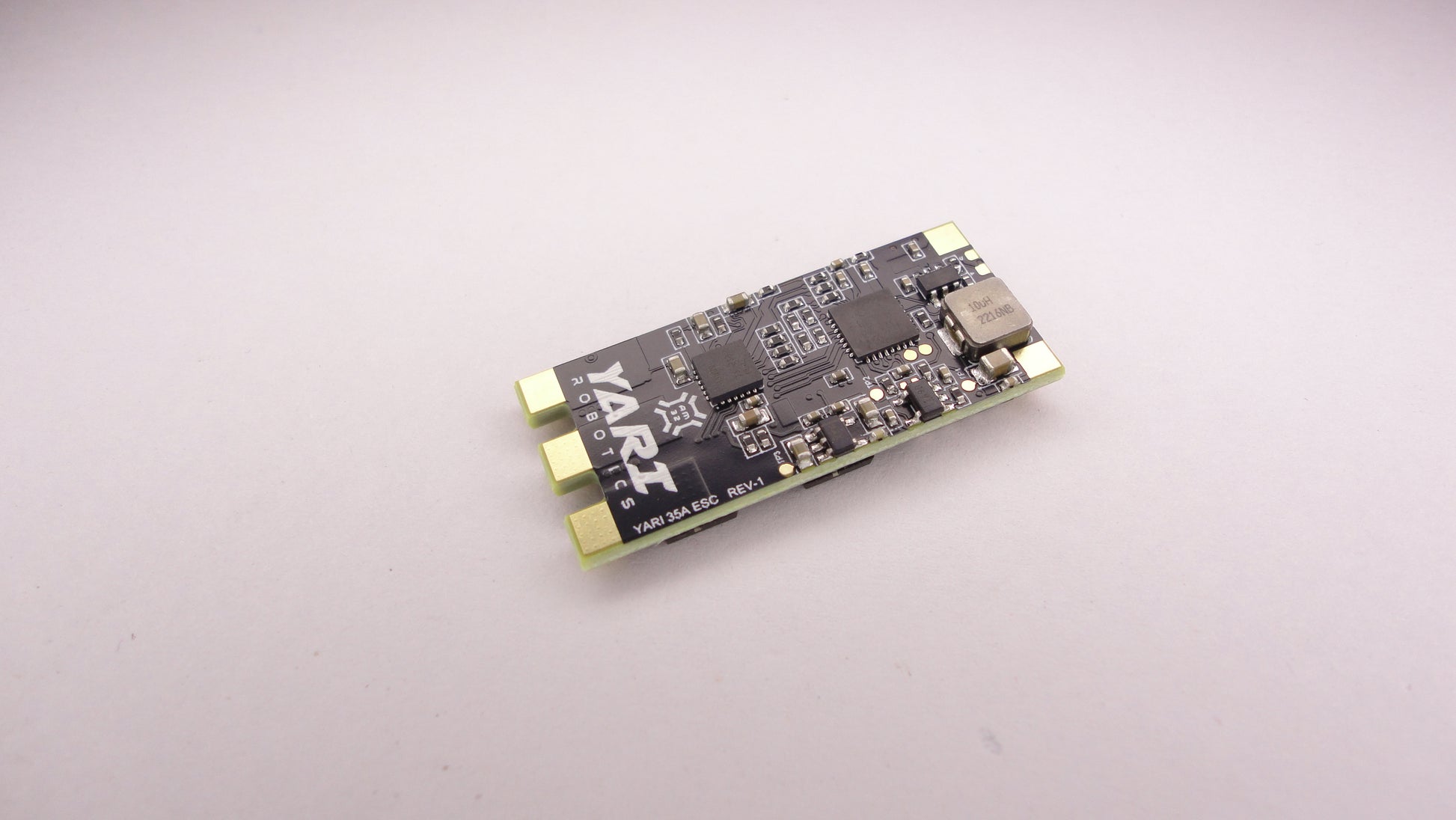

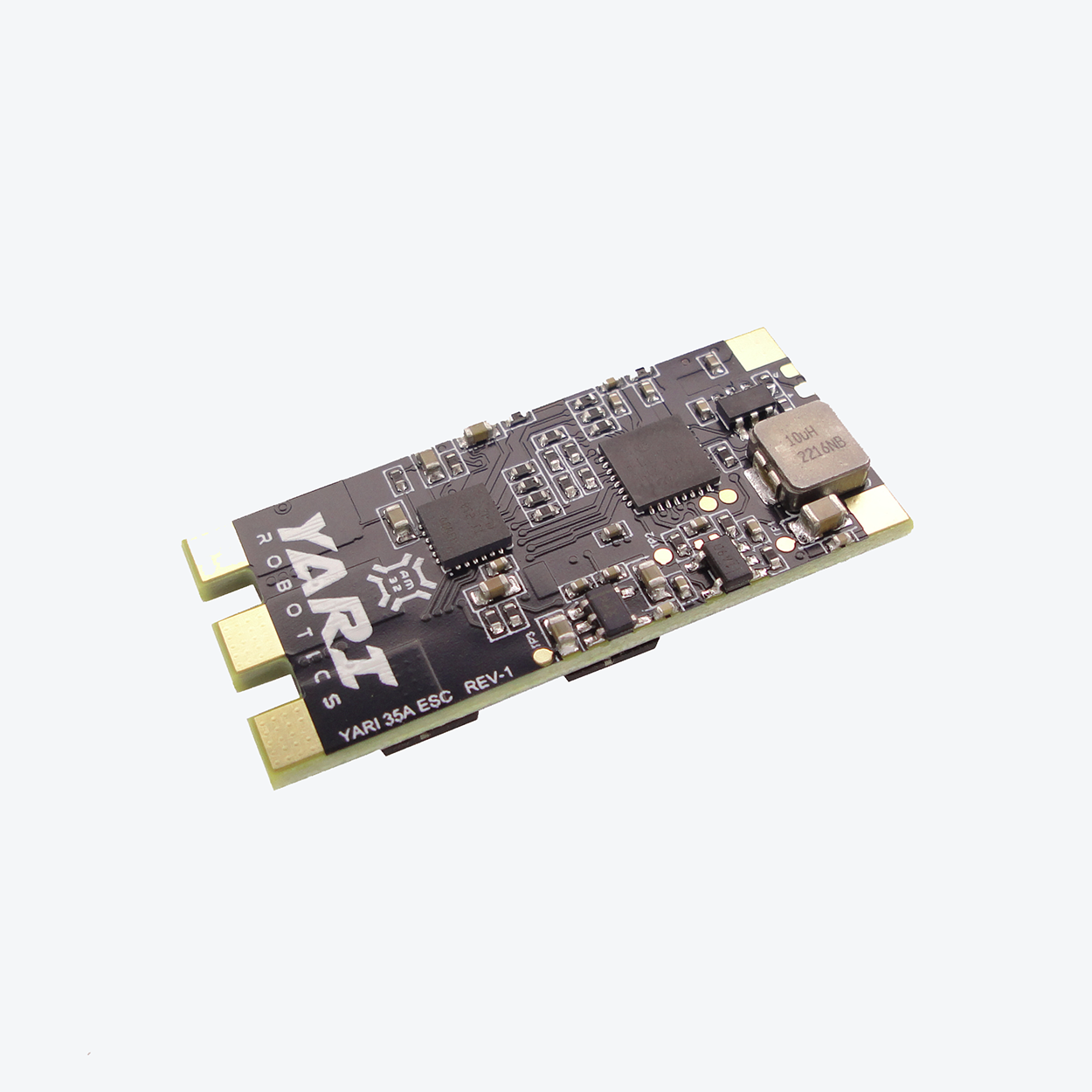

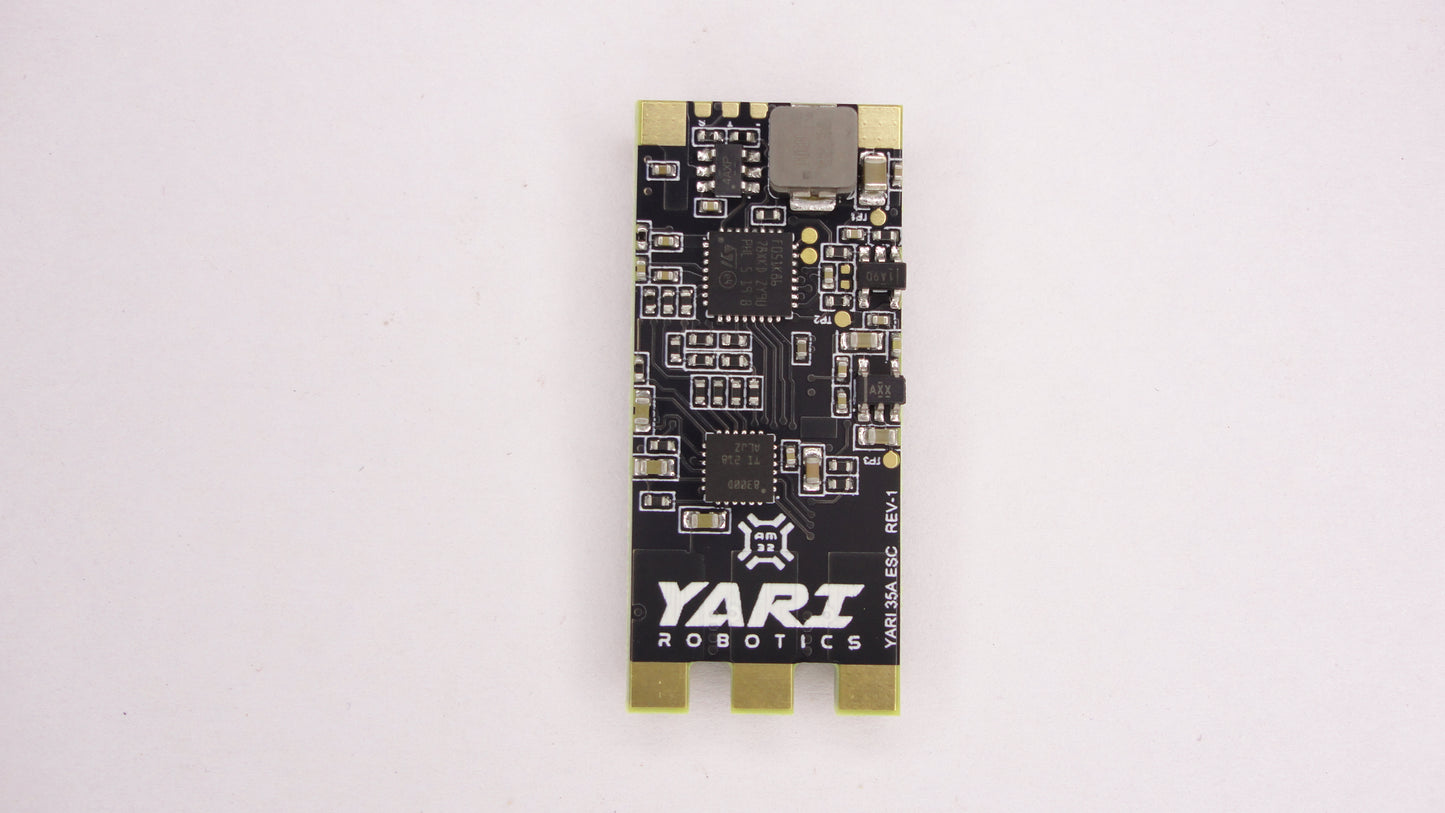

This advanced ESC is engineered for FPV, freestyle flying, and high-performance drones requiring precision, efficiency, and reliability. Built on the robust open-source AM32 firmware, it offers seamless configurability, firmware upgrades, and broad protocol support.
Key Highlights
- Seamless Flight Control: Instant throttle response with auto-braking for efficient deceleration.

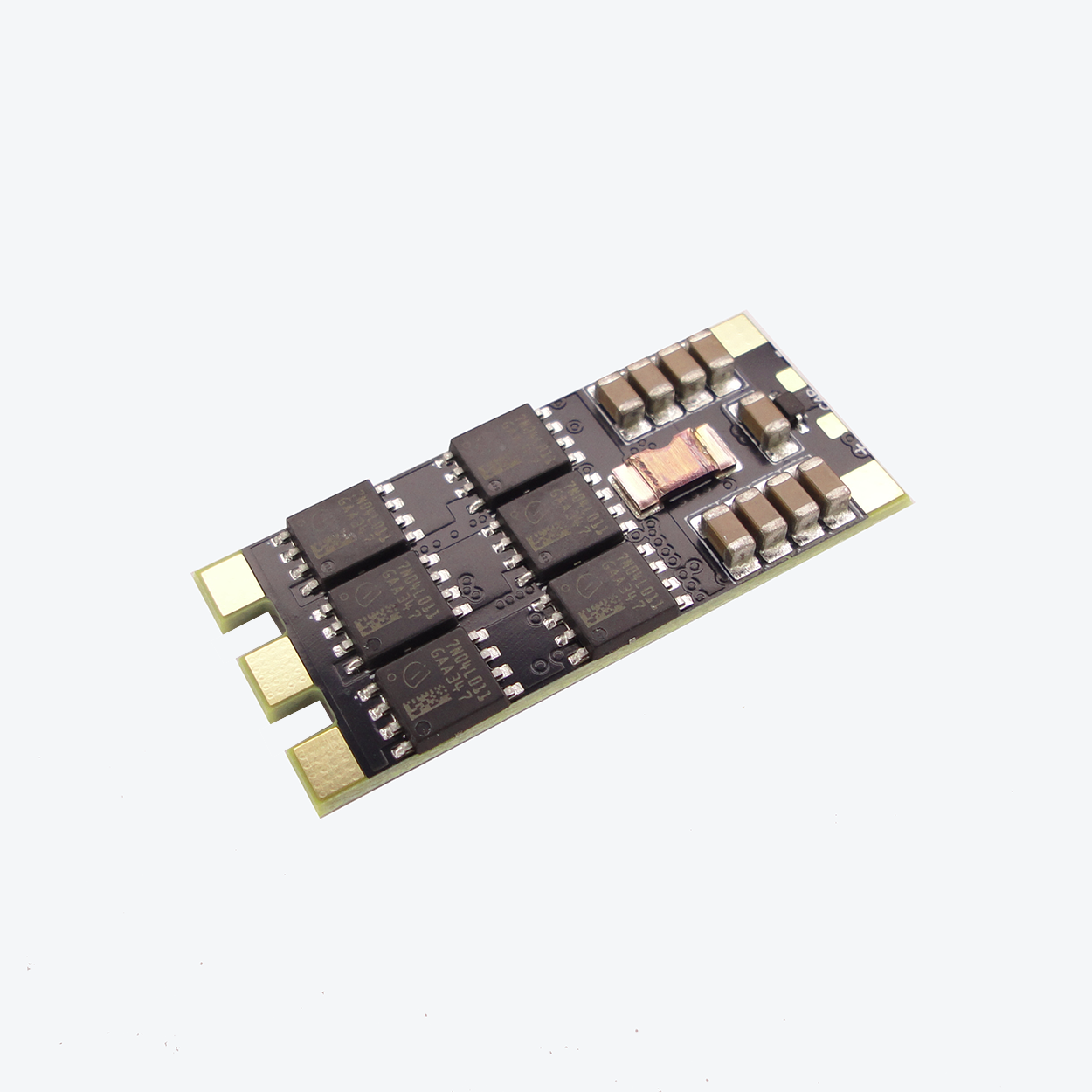

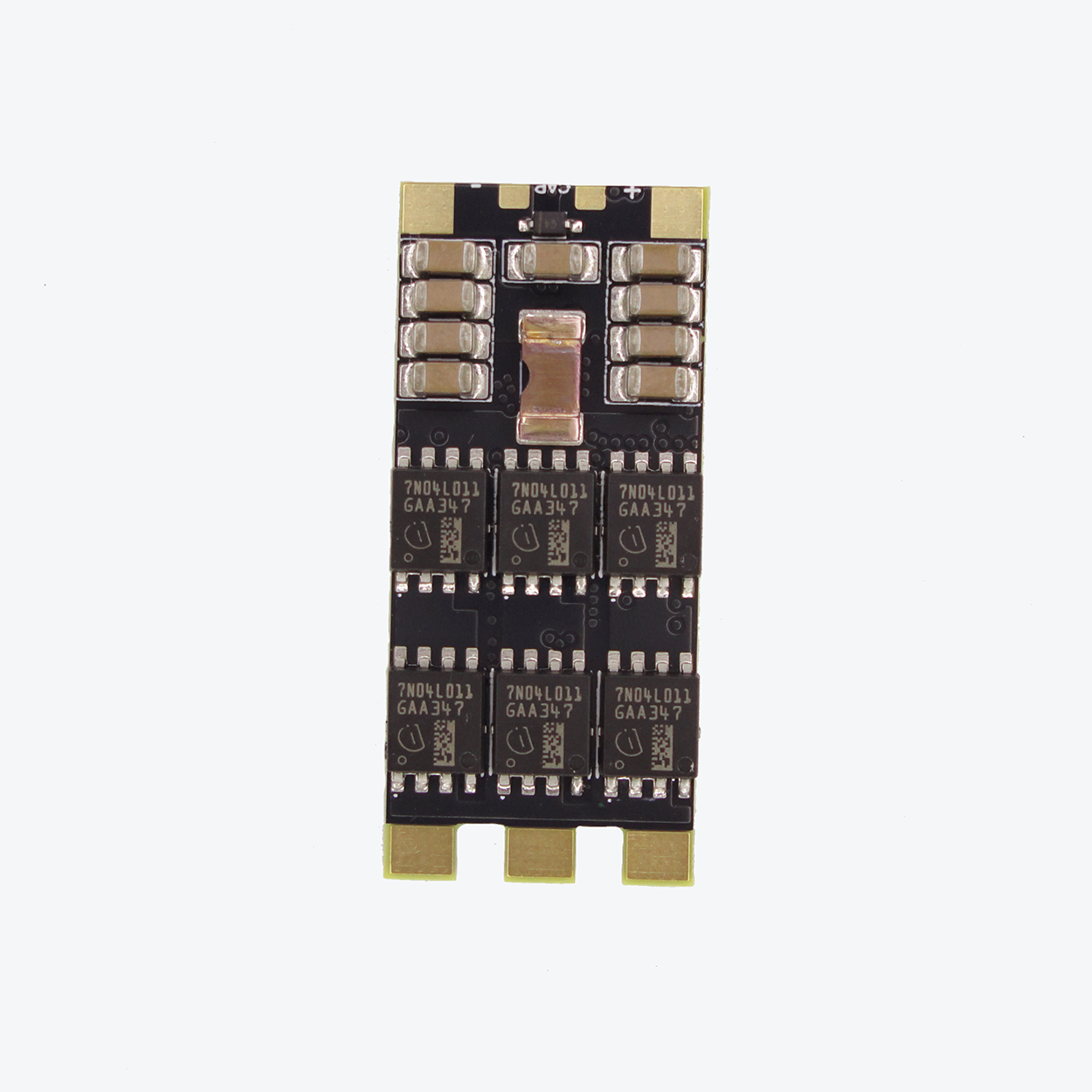

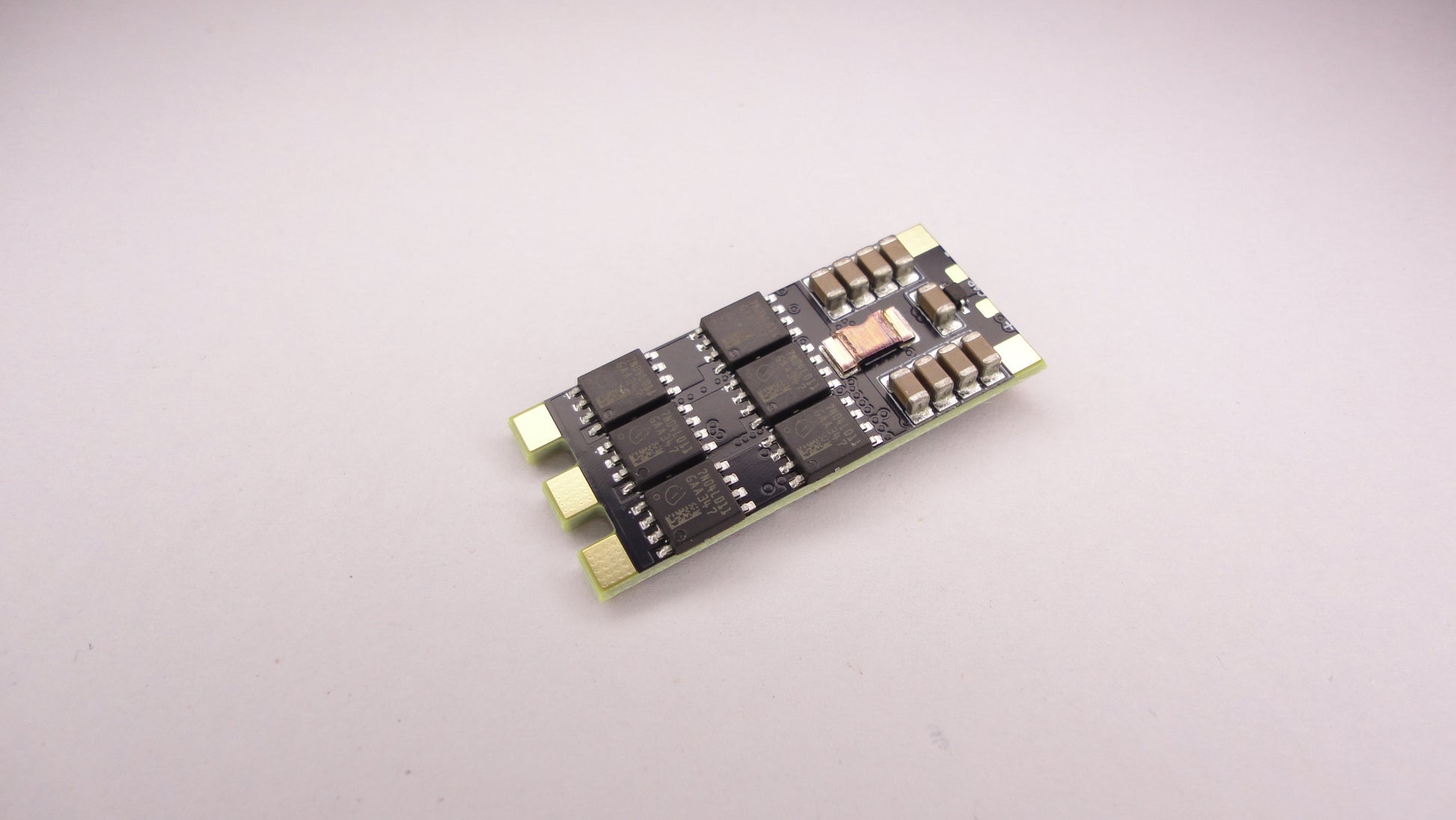

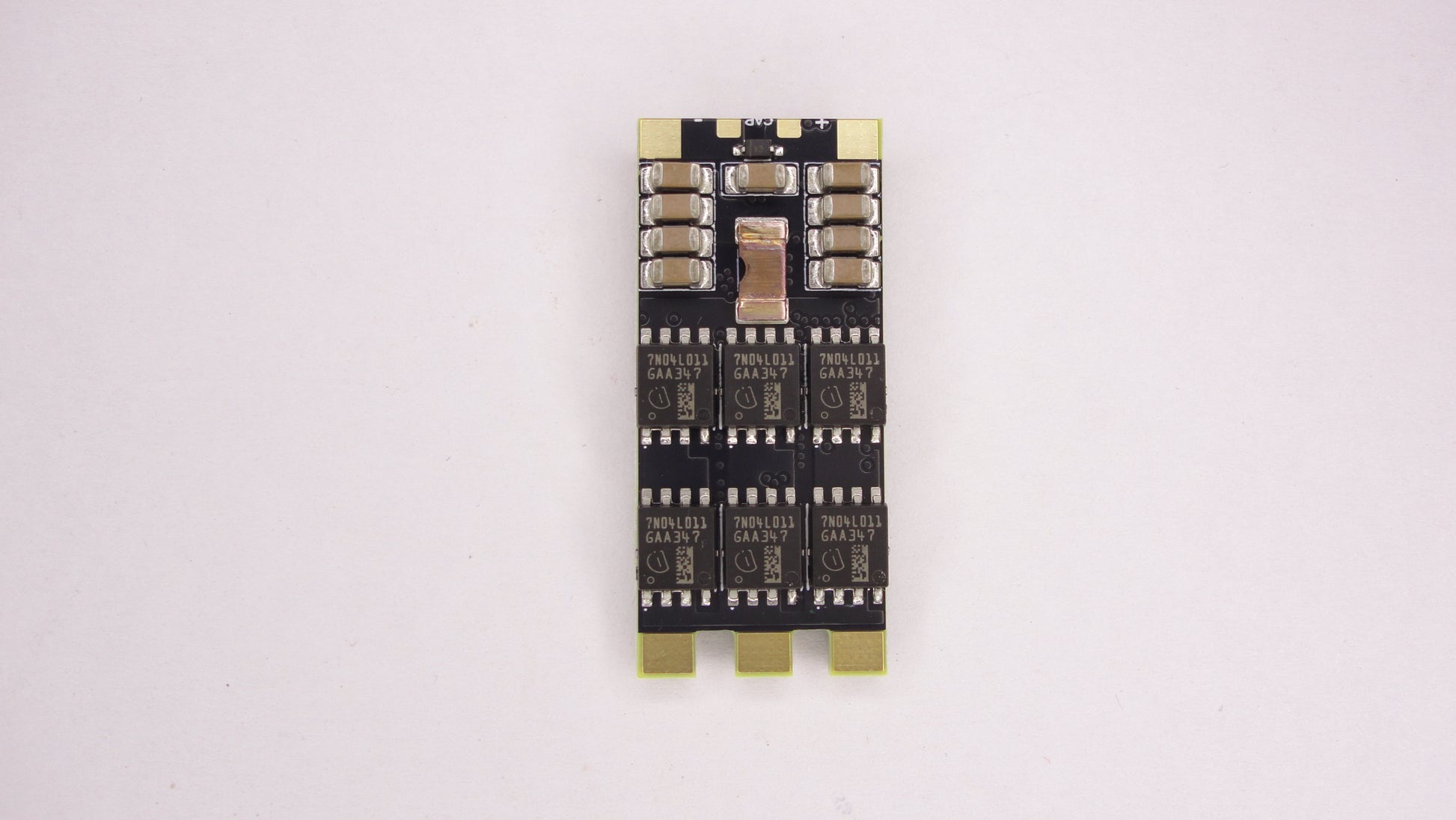

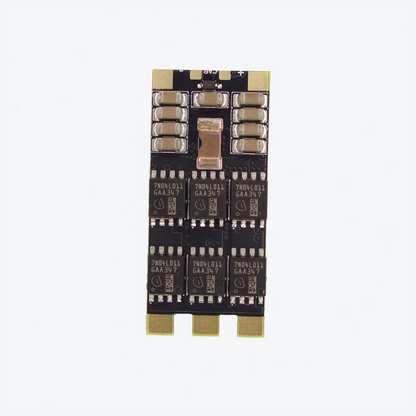

- Reliable Performance: Latest Automotive-grade Infineon MOSFETs with OptiMOS™ 7 technology ensure durability under demanding loads.
- Advanced Cooling: Aluminium alloy heatsink maintains consistent performance.
- Flexible Protocol Support: PWM, DShot, Bi-Directional DShot.
- Future-Proof: Full configurability via AM32 Configurator with Betaflight or Ardupilot passthrough.
Technical Specifications
| Processing | |
|---|---|

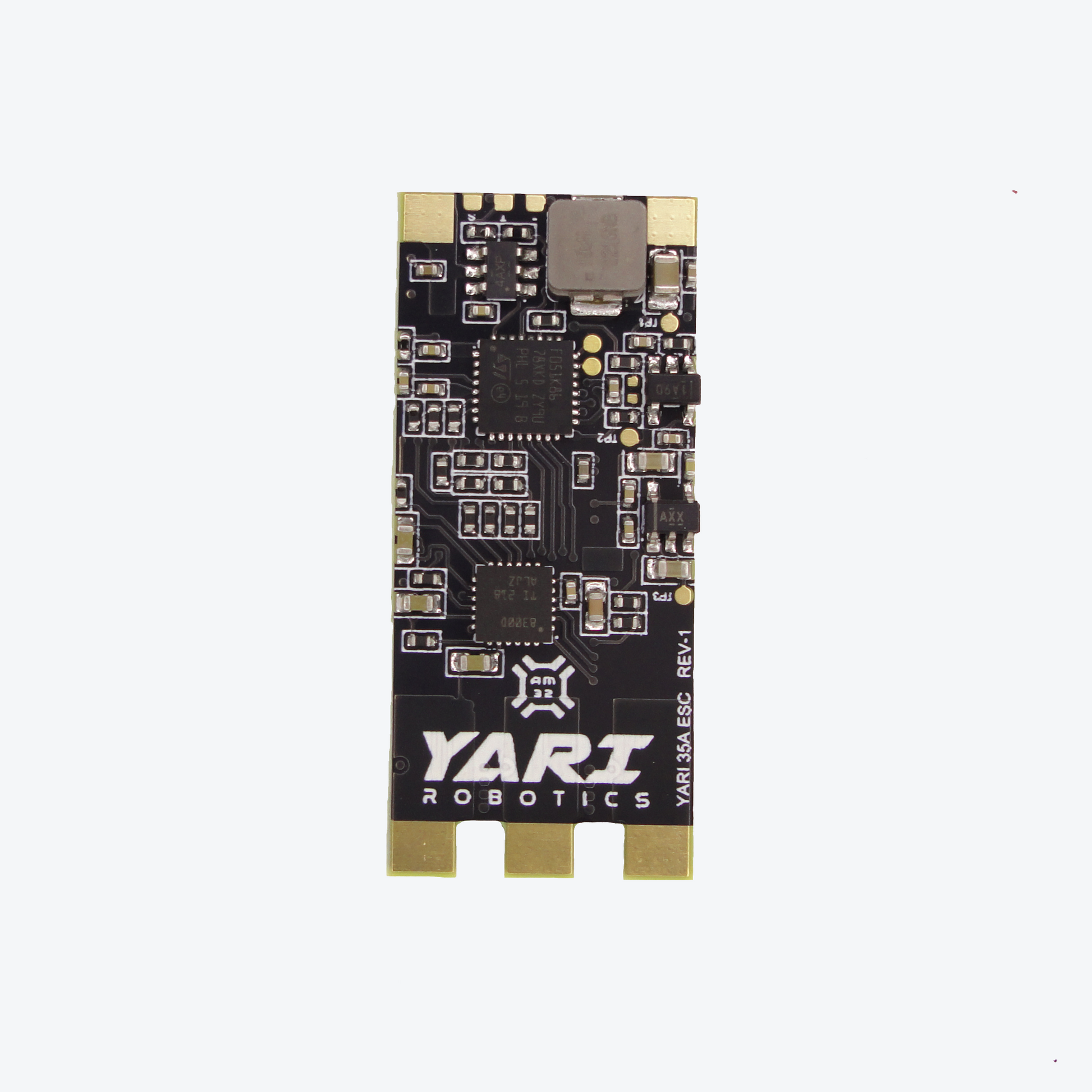

| Main Control Chip | ARM 32-bit Cortex-M0 (STM32F051) |
| Driver | DRV8300 |
| Firmware | AM32 v2.19 |
| Supported Protocols | PWM, DShot 300/600, BDShot |
| Interfaces | |
| Connectors | 3-pin Servo header |
| Wiring | 3 phase wires, 2 battery leads - 18 AWG |
| Electrical and Environmental | |
| Input Voltage | 3S – 8S LiPo |
| Continuous Current | 35A |
| Burst Current | 45A |
| Onboard Current Sensor | 100V/V |
| Mechanical | |
| Dimensions | 36.4 (L) x 16.8 (W) mm |
| Weight | 5g (without wires) |
| Others | |
| Country of Origin | India 🇮🇳 |
Package includes
- 1× YARI ESC with power and signal wires soldered
- 1× 35V 470uF cap
