This advanced ESC is engineered for FPV racing, freestyle flying, and high-performance drones requiring precision, efficiency, and reliability. Built on the robust open-source AM32 firmware, it offers seamless configurability, firmware upgrades, and broad protocol support.
Key Highlights
- Seamless Flight Control: Instant throttle response with auto-braking for efficient deceleration.

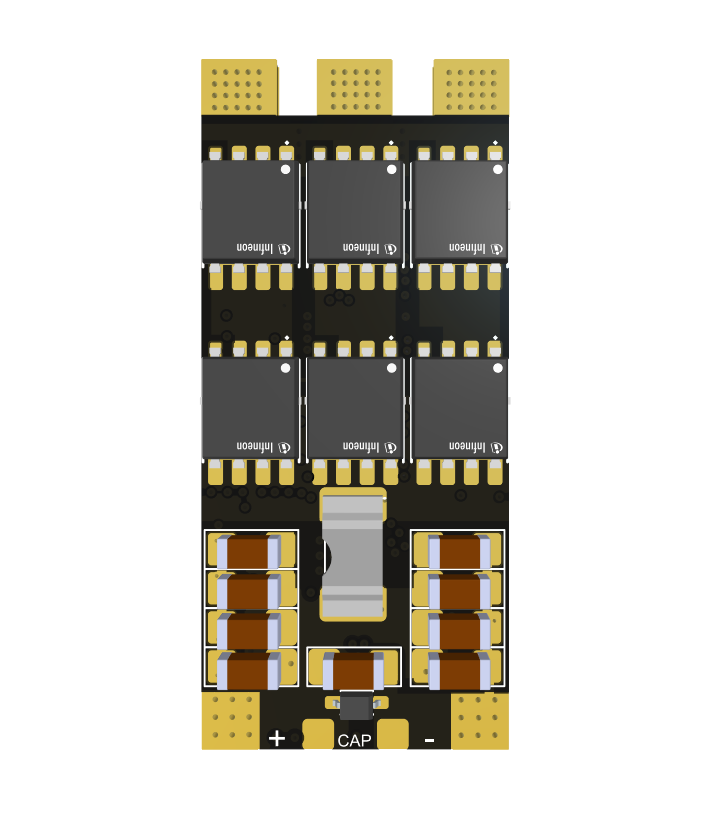

- Reliable Performance: Latest Automotive-grade Infineon MOSFETs with OptiMOS™ 7 technology ensure durability under demanding loads.
- Advanced Cooling: Aluminium alloy heatsink maintains consistent performance.
- Flexible Protocol Support: PWM, Oneshot, Multishot, DShot up to 1200, Bi-Directional DShot.
- Future-Proof: Full configurability via AM32 Configurator with Betaflight or Ardupilot passthrough.
Technical Specifications
| Specification | Details |
|---|---|
| Input Voltage | 3S – 8S LiPo |
| Continuous Current | 35A |
| Burst Current | 45A |
| Main Control Chip | ARM 32-bit Cortex-M0 (STM32F051) |
| Firmware | AM32 v2.19 |
| Onboard Current Sensor | 100V/V |
| Supported Protocols | PWM (1–2ms), Oneshot125/42, Multishot, DShot 300/600/1200, Bi-directional DShot |
| Connectors | 3-pin Servo header |
| Dimensions | ? |
| Weight | ? |
